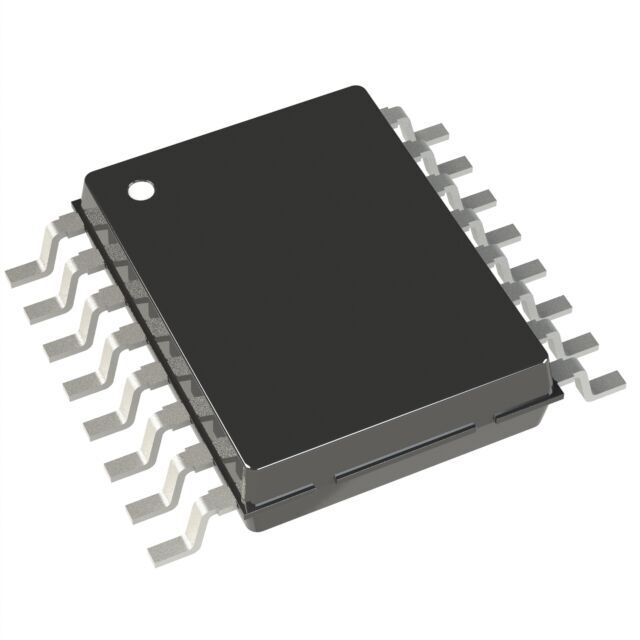

Same model may have multiple batches, images only for reference.
TLE5009A16DE1200XUMA1 Infineon Technologies – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

TLE5009A16DE1200XUMA1

Part No TLE5009A16DE1200XUMA1
Manufacturer Infineon Technologies
Catalog Position Sensors - Angle, Linear Position Measuring
Description Magnetoresistive Sensor Angle External Magnet, Not Included Gull Wing
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Infineon Technologies
Packaging Reel - TR
Part Status Last Time Buy
For Measuring Angle
Technology Magnetoresistive
Rotation Angle - Electrical, Mechanical 0° ~ 360°, Continuous
Output Analog Voltage
Output Signal Cosine, Sine
Actuator Type External Magnet, Not Included
Voltage - Supply 3V ~ 3.6V
Mounting Type Surface Mount
Termination Style Gull Wing
Temperature Range - Operating -40°C ~ 125°C
Grade Automotive
Qualification AEC-Q100
Package / Case 16-TSSOP (0.154", 3.90mm Width)
Supplier Device Package PG-TDSO-16
Base Product Number TLE5009
RoHS Status ROHS3 Compliant
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0060
Win Source Part Number 1478817-TLE5009A16DE1200XUMA1
Ultra Librarian 3D Model Ultra Librarian TLE5009A16DE1200XUMA1 CAD Model
