TLE5009E1000 Infineon Technologies
Same model may have multiple batches, images only for reference.

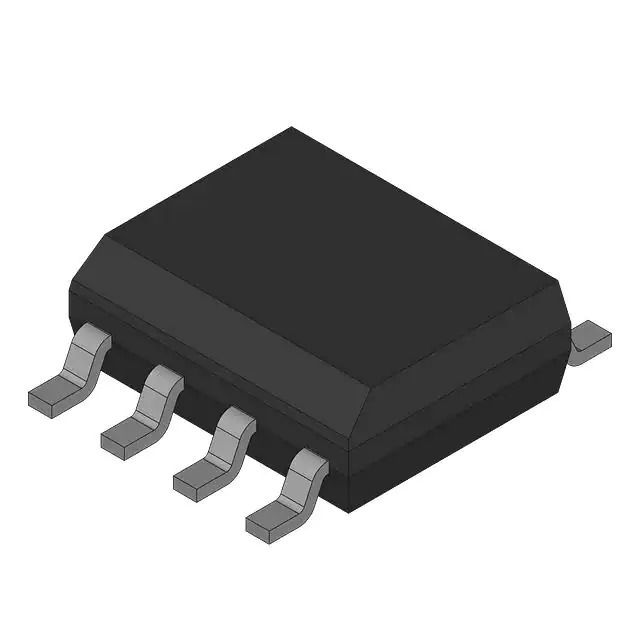

TLE5009E1000

Part No TLE5009E1000
Manufacturer Infineon Technologies
Catalog Position Sensors - Angle, Linear Position Measuring
Description MAGNETIC SWITCH ANGLE SENSOR / Magnetoresistive Sensor Angle External Magnet, Not Included SMD (SMT) Tab
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Position Sensors - Angle, Linear Position Measuring
Mfr Infineon Technologies
Series -
Package Bulk
Product Status Active
For Measuring Angle
Technology Magnetoresistive
Rotation Angle - Electrical, Mechanical 0° ~ 360°, Continuous
Linear Range -
Output Analog Voltage
Output Signal -
Actuator Type External Magnet, Not Included
Linearity -
Resistance Tolerance -
Voltage - Supply 3V ~ 3.6V
Mounting Type Surface Mount
Termination Style SMD (SMT) Tab
Temperature Range - Operating -40°C ~ 150°C
Package / Case 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package PG-DSO-8-16
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1355539-TLE5009E1000
Ultra Librarian 3D Model Ultra Librarian TLE5009E1000 CAD Model

Description

The TLE5009E1000 is a magnetoresistive position sensor designed by Infineon Technologies. It is part of the angle and linear position measuring sensors category.

  • Operating Temperature: -40°C ~ 150°C
  • Voltage - Supply: 3V ~ 3.6V
  • Output Type: Analog Voltage
  • Rotation Angle: 0° ~ 360°
  • Package / Case: 8-SOIC
