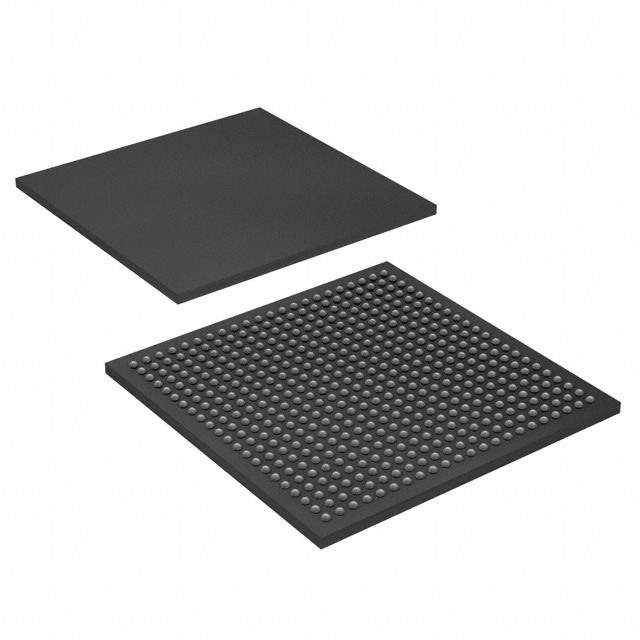

The EP2C50U484C7N is a member of the Cyclone II FPGA family from Intel (formerly Altera). These FPGAs are built on a low-cost, low-power architecture, making them ideal for a wide range of applications. The 'EP2C50' indicates a device with approximately 50,000 logic elements, and the 'U484' signifies a 484-pin Ultra FineLine BGA (UBGA) package. 'C7N' denotes the temperature grade and lead-free status.

Applications

• Industrial control systems: Implementing custom control algorithms and interfaces.
• Image and video processing: Accelerating computationally intensive tasks.
• Motor control: Providing precise control over motor speed and position.
• Consumer electronics: Implementing custom logic in devices like digital cameras and media players.
• Networking equipment: Implementing custom protocols and data processing.

Features

• 50,000 logic elements (LEs): Provides ample resources for complex designs.
• 484-pin UBGA package: Offers a compact footprint for space-constrained applications.
• Embedded memory: Includes on-chip memory blocks for data storage and processing.
• Digital signal processing (DSP) blocks: Enables efficient implementation of DSP algorithms.
• Clock management circuitry: Provides flexible clock generation and distribution.
• High-speed I/O: Supports various I/O standards for interfacing with external devices.

Benefits

• Flexibility: Allows for custom hardware implementation of virtually any digital logic function.
• Cost-effectiveness: Offers a low-cost solution for implementing complex designs.
• Low power consumption: Minimizes power dissipation, making it suitable for portable applications.
• Fast time-to-market: Enables rapid prototyping and development.
• Reconfigurability: Allows for design changes and updates without hardware modifications.

Additional Details

The EP2C50U484C7N FPGA is based on a 1.2V core voltage and features a programmable interconnect architecture that allows for flexible routing of signals between logic elements. The device includes embedded memory blocks that can be configured as RAM, ROM, or FIFO. The DSP blocks provide dedicated hardware for performing multiplication, accumulation, and other DSP operations. The clock management circuitry includes phase-locked loops (PLLs) that can generate multiple clock frequencies from a single input clock. The high-speed I/O supports various standards, including LVDS, HSTL, and SSTL. Development of designs for the EP2C50U484C7N is typically done using Intel's Quartus Prime software. This software provides a comprehensive suite of tools for design entry, synthesis, place and route, and simulation. The software also includes a library of pre-built IP cores that can be used to accelerate development.
