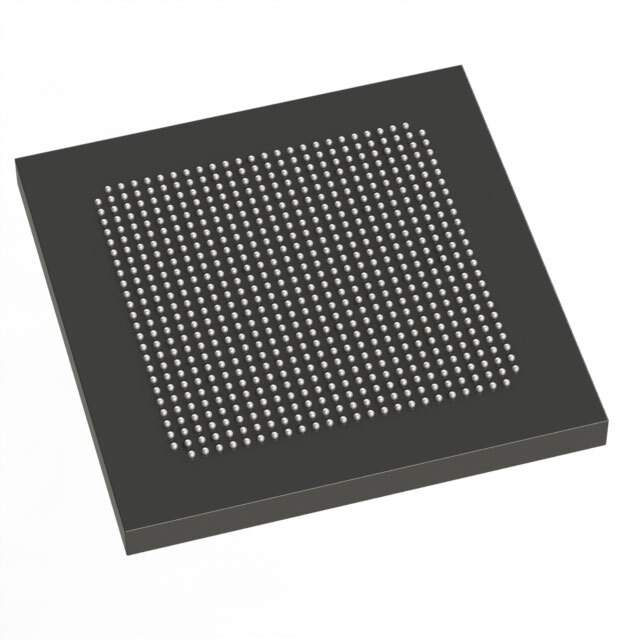

EP4SGX230DF29C2XN Real Image
Same model may have multiple batches, images only for reference.

EP4SGX230DF29C2XN

Part No EP4SGX230DF29C2XN
Manufacturer Intel
Catalog Embedded - FPGAs (Field Programmable Gate Array)
Description IC FPGA 372 I/O 780FBGA
Datasheet
EP4SGX230DF29C2XN Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Features series Field Programmable Gate Array (FPGA) IC 372 17544192 228000 780-BBGA, FCBGA
Manufacturer Intel
Series Stratix® IV GX
Package Tray
Part Status Obsolete
Number of I/O 372
Operating Temperature Range 0°C ~ 85°C (TJ)
Mounting Surface Mount
Package 780-BBGA, FCBGA
Case / Package 780-FBGA (29x29)
Family Name EP4SGX230
MSL Level 3 (168 Hours)
ECCN 3A001A7A
HTSUS 8542.39.0001
Quantity per package 36
Popularity High
Supply and Demand Status Balance
Win Source Part Number 918347-EP4SGX230DF29C2XN
Ultra Librarian 3D Model Ultra Librarian EP4SGX230DF29C2XN CAD Model

Description

The Intel EP4SGX230DF29C2XN is a series Field Programmable Gate Array (FPGA) IC 372 17544192 228000 780-BBGA, FCBGA that is designed to provide high-performance processing capabilities in a wide range of electronic devices.

  • Operating Temperature: 0°C ~ 85°C (TJ)
  • Popularity: High
  • Package Includes: 36 units
  • MSL Level: 3 (168 Hours)
  • HTSUS Code: 8542.39.0001
  • Other Part Numbers: 918347-EP4SGX230DF29C2XN and EP4SGX230
