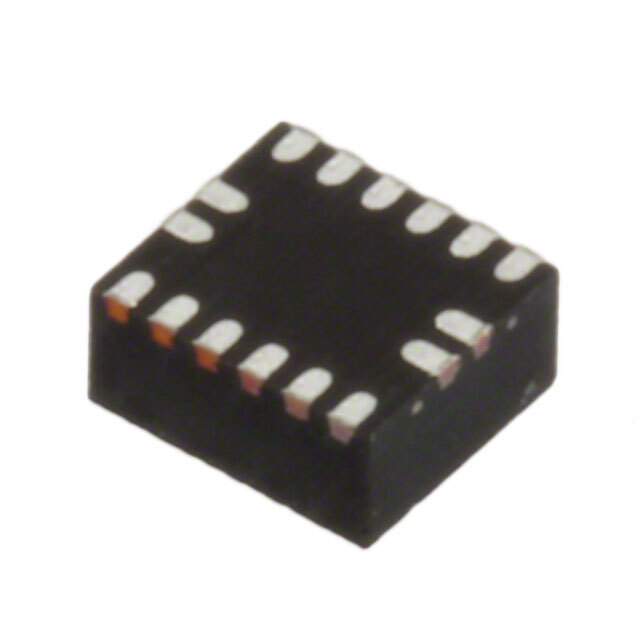

The 1090785 is a non-isolated PoL module belonging to the Enpirion 5300 series.

• Features: Remote On/Off, OCP, OTP, SCP, UVLO
• Package: Tape & Reel
• Application: ITE (Commercial)
• Standard Package: 1,000
• Mounting: SMD (SMT)
• Control Feature: Enable, Active High
• Number of Outputs: 1
• Current Output (Max): 600mA
• Voltage Input (Min): 2.4V
• Voltage Input (Max): 5.5V
• Voltage Output 1: 0.6 ~ 5.2V
• Efficiency: 93%
• Package/Case: 16-PowerTFQFN Module
• Supplier Device Package: 16-µQFN (2.5x2.25)
• Operating Temperature Range: -40°C ~ 85°C
• Dimension: 0.10" L x 0.09" W x 0.04" H (2.5mm x 2.3mm x 1.1mm)
• MSL Level: 3 (168 Hours)
• REACH: Unaffected
• HTSUS: 8504.40.9580
• Status: Obsolete
