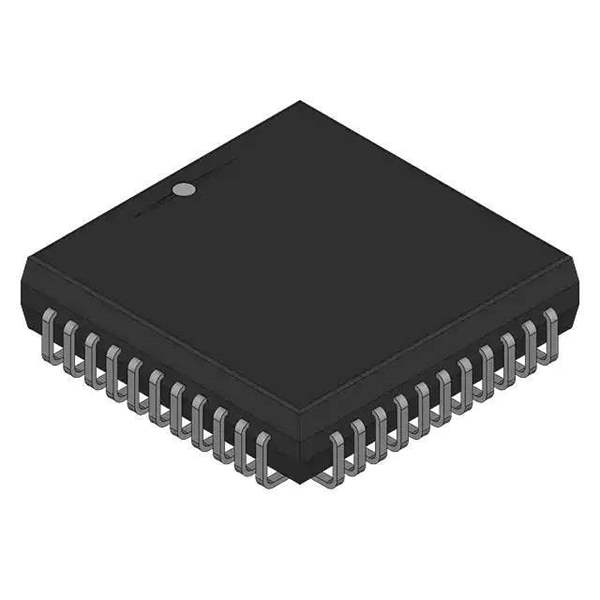

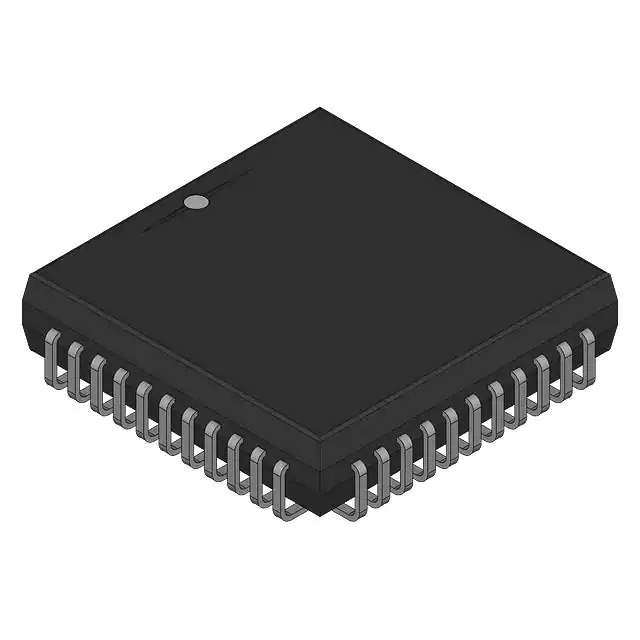

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - Microcontrollers
Mfr Intel
Package Bulk
Product Status Active
Programmable Not Verified
Core Processor 80C54
Core Size 8-Bit
Speed 12MHz
Number of I/O 32
Program Memory Size 16KB (16K x 8)
Program Memory Type ROM
RAM Size 256 x 8
Voltage - Supply (Vcc/Vdd) 4V ~ 6V
Oscillator Type External, Internal
Temperature Range - Operating 0°C ~ 70°C (TA)
Mounting Type Surface Mount
Package / Case 44-LCC (J-Lead)
Supplier Device Package 44-PLCC
Standard Package 1 pcs
MSL Level 3 (168 Hours)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8542.31.0001
Win Source Part Number 249388-N80C54
Ultra Librarian 3D Model Ultra Librarian N80C54 CAD Model

Description

The 249388-N80C54 is an integrated circuit (IC) belonging to the 80C54 series of microcontrollers.

  • Core Processor: 80C54 core processor
  • Core Size: 8-bit
  • Operating Speed: 12MHz
  • Package: bulk
  • Standard Package: 1 piece
  • I/O Pins: 32
  • ROM: 16KB (16K x 8)
  • RAM Size: 256 x 8
  • Oscillator Types: external and internal
  • Voltage Supply (Vcc/Vdd): 4V to 6V
  • Temperature Range (TA): 0°C to 70°C
  • Product Status: active
