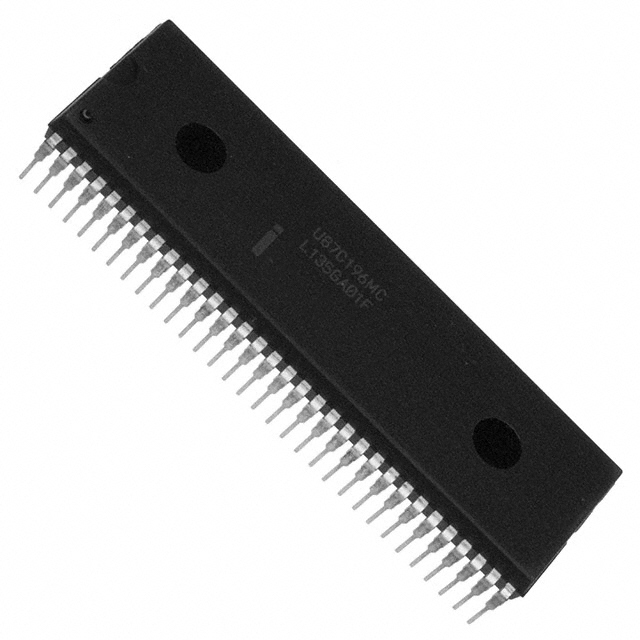

U87C196MCSF81 Intel
Same model may have multiple batches, images only for reference.

U87C196MCSF81

Part No U87C196MCSF81
Manufacturer Intel
Catalog Embedded - Microcontrollers
Description IC MCU 16BIT 16KB OTP 64SDIP
Datasheet
U87C196MCSF81 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Intel
Packaging Tube/Rail
Status Obsolete(EOL)
Core Processor MCS 96
Part Core Size 16-Bit
Speed(Frequency) 16MHz
Number of I/O 53
Program Memory Size 16KB (16K x 8)
Program Memory Type OTP
Data RAM Size 256 x 8
Supply Voltage - Operating 4.5 V to 5.5 V
Data Converters A/D 13x10b
Oscillator Type External
Temperature Range - Operating 0°C to 70°C (TA)
Win Source Part Number 108538-U87C196MCSF81
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian U87C196MCSF81 CAD Model

Description

The Intel 108538-U87C196MCSF81 is an MCS 96 core processor with a speed of 16MHz.

  • Core Processor: MCS 96
  • Speed: 16MHz
  • I/Os: 53
  • Program Memory: 16KB OTP
  • Oscillator Type: External
  • Data Converters: A/D 13x10b
  • Data RAM Size: 256 x 8
  • Temperature Range: 0°C to 70°C
  • Part Core Size: 16-bit
  • Supply Voltage: 4.5 V to 5.5 V
  • Category: Obsolete
  • Supply and Demand Status: Balanced
