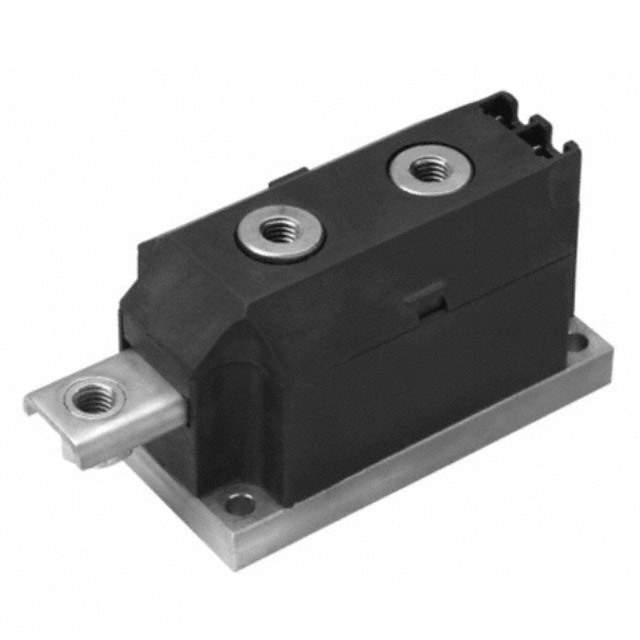

The IRKD250-08 is a dual diode module from International Rectifier, now Infineon Technologies, designed for high-power rectification applications. This module features two diodes in a common cathode configuration, offering efficient and reliable performance in power conversion circuits.

Applications

• Power Supplies
• Motor Drives
• Battery Chargers
• Welding Equipment
• Uninterruptible Power Supplies (UPS)

Features

• Isolated Base
• High Surge Current Capability
• Electrically Isolated Base Plate
• High Voltage
• Simplified Mechanical Assemblies

Benefits

• Simplified thermal management due to isolated base
• Increased reliability in harsh environments
• Easy mounting and connection
• Suitable for high-power applications

Additional Details

The IRKD250-08 is designed for robust performance in demanding applications. The electrically isolated base plate allows for direct mounting to heatsinks without the need for additional insulation. The high surge current capability ensures reliable operation under transient conditions. The module is typically supplied in a industry standard package. The average forward current is 250A. The repetitive peak reverse voltage is 800V.
