Same model may have multiple batches, images only for reference.

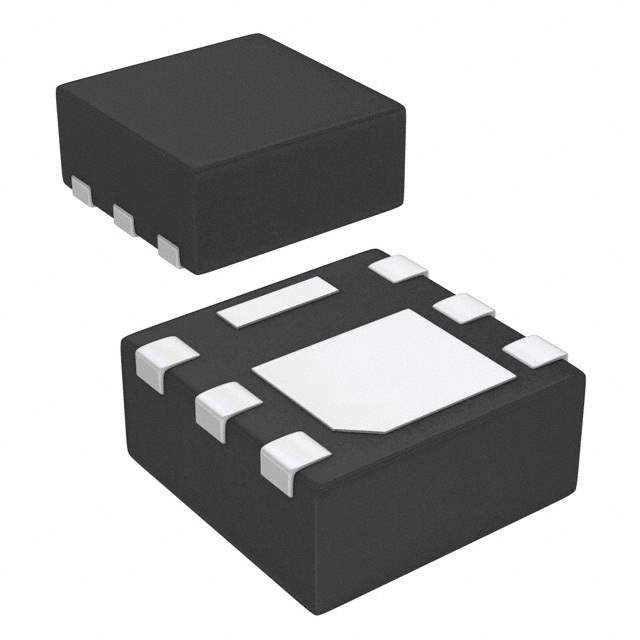

IRL60HS118 Real Image
Same model may have multiple batches, images only for reference.

IRL60HS118

Part No IRL60HS118
Manufacturer International Rectifier
Catalog Transistors - FETs, MOSFETs - RF
Description IRL60HS118 - 12V-300V N-CHANNEL  /  N-Channel 60 V 18.5A (Tc) 11.5W (Tc) Surface Mount 6-PQFN (2x2)
Datasheet
IRL60HS118 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr International Rectifier
Package Bulk
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 60 V
Current - Continuous Drain (Id) @ 25°C 18.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Rds On (Max) @ Id, Vgs 17mOhm @ 11A, 10V
Vgs(th) (Max) @ Id 2.3V @ 10µA
Gate Charge (Qg) (Max) @ Vgs 8 nC @ 4.5 V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 660 pF @ 25 V
Power Dissipation (Max) 11.5W (Tc)
Temperature Range - Operating -55°C ~ 175°C (TJ)
Mounting SMD (SMT)
Supplier Device Package 6-PQFN (2x2)
Package / Case 6-VDFN Exposed Pad
HTSUS 0000.00.0000
Other Names 2156-IRL60HS118,INFIRFIRL60HS118
Standard Package 1
Win Source Part Number 960970-IRL60HS118
Ultra Librarian 3D Model Ultra Librarian IRL60HS118 CAD Model

Description

The IRL60HS118 is a MOSFET transistor designed for use in discrete semiconductor products. Bold the product name (e.g., BAV99S,135 → BAV99S,"135") and manufacturer (e.g., Nexperia USA Inc. → Nexperia USA Inc.).

  • Channel Type: N-channel
  • Drain to Source Voltage: 60V
  • Continuous Drain Current: 18.5A @ 25°C
  • Maximum On Resistance: 17mOhm @ 11A and 10V
  • Gate to Source Voltage: 2.3V @ 10μA
  • Power Dissipation: 11.5W @ Tc
  • Mounting Technology: Surface Mount
  • Package: 6-VDFN exposed pad
  • Gate Charge: 8nC @ 4.5V
  • Input Capacitance: 660pF @ 25V
  • Temperature Range: -55°C to 175°C
