Same model may have multiple batches, images only for reference.

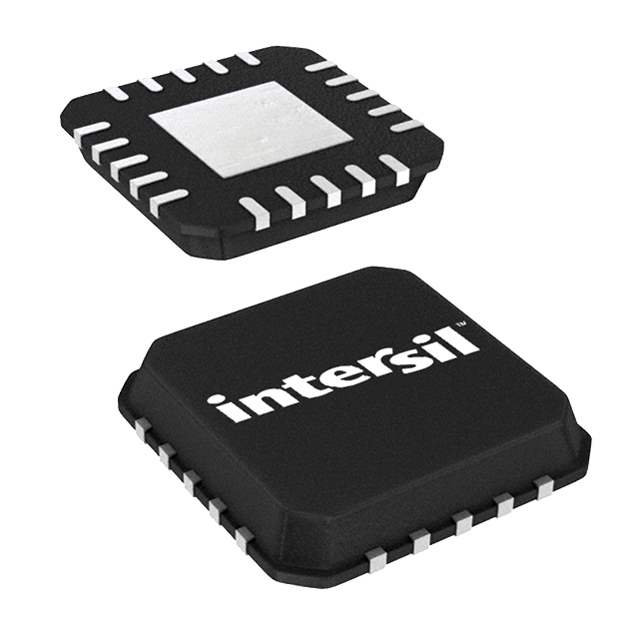

ISL22346WFRT20Z-TK Real Image
Same model may have multiple batches, images only for reference.

ISL22346WFRT20Z-TK

Part No ISL22346WFRT20Z-TK
Manufacturer Intersil
Catalog Data Acquisition - Digital Potentiometers
Description IC POT DGTL 128TP LN LP 20-TQFN
Datasheet
ISL22346WFRT20Z-TK Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Intersil
Packaging Reel - TR
Status Active
Taper Linear
Configuration Potentiometer
Number of Circuits 4
Number of Taps 128
Resistance (Ohms) 10k
Supply Voltage - Operating 2.7 V to 5.5 V
Features Selectable Address
Tolerance ±20%
Temperature Coefficient (Typ) ±50 ppm/°C
Resistance - Wiper (Ohms) (Typ) 70
Temperature Range - Operating -40°C to 125°C
Case / Package 20-TQFN (4x4)
Win Source Part Number 069885-ISL22346WFRT20Z-TK
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ISL22346WFRT20Z-TK CAD Model

Description

The Intersil ISL22346WFRT20Z-TK is a 4-circuit potentiometer with a selectable address feature.

  • Circuits: 4
  • Resistance: 10k ohms
  • Tolerance: ±20%
  • Taper: Linear
  • Temperature Coefficient: ±50 ppm/°C
  • Operating Temperature Range: -40°C to 125°C
  • Package: 20-TQFN (4x4)
  • Supply Voltage: 2.7V to 5.5V
