Same model may have multiple batches, images only for reference.

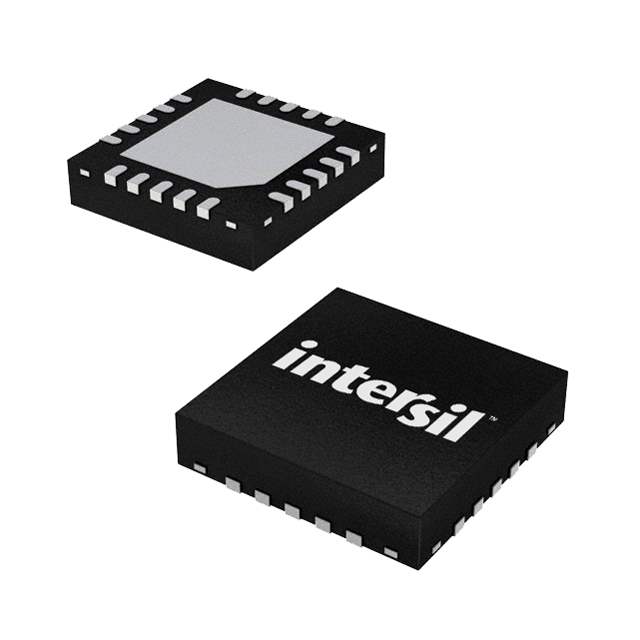

ISL43840IRZ Real Image
Same model may have multiple batches, images only for reference.

ISL43840IRZ

Part No ISL43840IRZ
Manufacturer Intersil
Catalog Interface - Analog Switches, Multiplexers, Demultiplexers
Description IC MUX/DEMUX DUAL 4X1 20QFN
Datasheet
ISL43840IRZ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Intersil
Packaging Tube/Rail
Status Active
Switch Circuit SP4T
Number of Circuits 2
Max On Resistance 50 Ohm
Channel-to-Channel Matching (ΔRon) 1.3 Ohm
Single Supply Voltage (V+) 2.7 V to 12 V
Dual Supply Voltage(V±) ±2 V to 6 V
Max Switch Time (Ton,Toff) 50ns, 35ns
Charge Injection 0.3pC
Channel Capacitance(CS off, CD off) 3pF, 12pF
Max Leakage Current (IS off) 100pA
Crosstalk -105dB @ 100kHz
Temperature Range - Operating -40°C to 85°C (TA)
Case / Package 20-QFN-EP (4x4)
Win Source Part Number 017929-ISL43840IRZ
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian ISL43840IRZ CAD Model

Description

The Intersil ISL43840IRZ is a 2-channel SP4T switch circuit Integrated Circuit.

  • Charge Injection: 0.3pC
  • Crosstalk: -105dB @ 100kHz
  • Channel-to-channel matching (ΔRon): 1.3 Ohm
  • Maximum On Resistance: 50 Ohm
  • Package: 20-QFN-EP (4x4)
  • Single Supply Voltage (V+): 2.7 V to 12 V
  • Dual Supply Voltage(V±): ±2 V to 6 V
  • Popularity: Medium popularity rating
  • Supply and Demand: Limited
