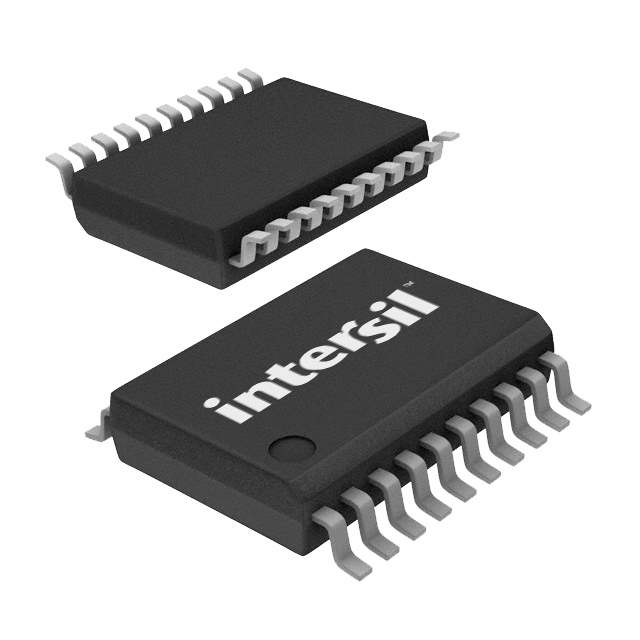

ISL6420IAZ-TK Real Image
Same model may have multiple batches, images only for reference.

ISL6420IAZ-TK

Part No ISL6420IAZ-TK
Manufacturer Intersil
Catalog PMIC - Voltage Regulators - DC DC Switching Controllers
Description IC REG CTRLR BUCK 20QSOP
Datasheet
ISL6420IAZ-TK Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Intersil
Packaging Reel - TR
Status Obsolete(EOL)
Output Type Transistor Driver
Purpose Step-Down
Topology Buck
Number of Outputs 1
Output Phases 1
Supply Voltage - Operating 5.6 V to 16 V
Frequency - Switching 100kHz to 1.4MHz
Duty Cycle (Max) 96%
Synchronous Rectifier Yes
Clock Sync No
Control Features Enable, Frequency Control, Phase Control, Power Good, Soft Start
Temperature Range - Operating -40°C to 85°C (TA)
Case / Package 20-QSOP
Win Source Part Number 1048557-ISL6420IAZ-TK
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ISL6420IAZ-TK CAD Model

Description

The Intersil ISL6420IAZ-TK is a transistor driver integrated circuit that is designed to operate in a buck topology.

  • Topology: Buck
  • Switching Frequency Range: 100kHz to 1.4MHz
  • Control Features: Enable, frequency control, phase control, power good, and soft start
  • Output Phases: One
  • Duty Cycle: Up to 96%
  • Rectification: Synchronous
  • Operating Temperature Range: -40°C to 85°C
  • Package: 20-QSOP
  • Operating Voltage: 5.6V to 16V
  • Supply and Demand Status: Balanced
