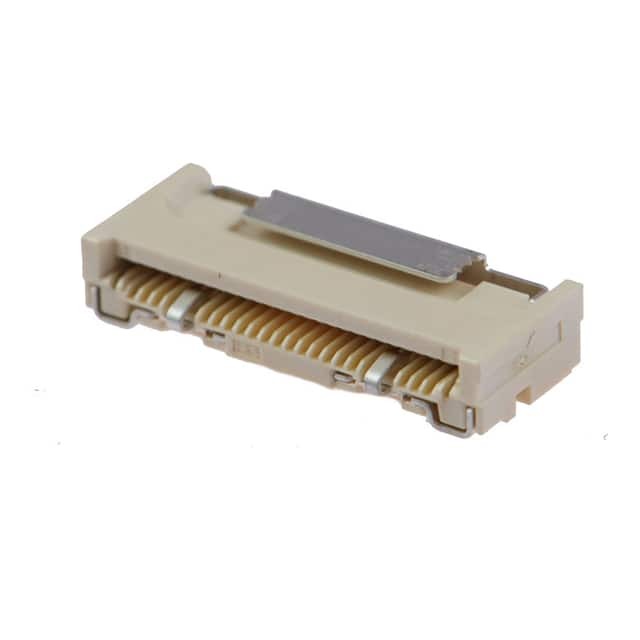

IMSA-11501S-25A-GFN1 IRISO
Same model may have multiple batches, images only for reference.

IMSA-11501S-25A-GFN1

Part No IMSA-11501S-25A-GFN1
Manufacturer IRISO
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC R/A .5MM 25POS / 25 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Datasheet
IMSA-11501S-25A-GFN1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr IRISO USA Inc.
Series 11501
Package Tape & Reel (TR),Cut Tape (CT)
Flat Flex Type FFC, FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 25
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.134" (3.40mm)
Cable End Type Notched
Contact Material Copper Alloy
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP)
Features Solder Retention
Voltage Rating 50V
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Base Product Number IMSA-115
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Other Names IMSA-11501S-25Y900,2248-IMSA-11501S-25A-GFN1TR,2248-IMSA-11501S-25A-GFN1CT
Standard Package 1,500
Win Source Part Number 1034451-IMSA-11501S-25A-GFN1
Ultra Librarian 3D Model Ultra Librarian IMSA-11501S-25A-GFN1 CAD Model

Description

The IMSA-11501S-25A-GFN1 is a connector designed for use in FFC/FPC (Flat Flexible) applications. The connector is manufactured by IRISO USA Inc. and is part of the IMSA-11501 series.

  • Positions: 25
  • Pitch: 0.020" (0.50mm)
  • Features: Solder Retention
  • Termination: Solder
  • Contact Finish: Gold
  • Contact Material: Copper Alloy
  • Packaging: Tape & Reel (TR), Cut Tape (CT)
  • Height Above Board: 0.134" (3.40mm)
  • Mounting Type: Surface Mount, Right Angle
