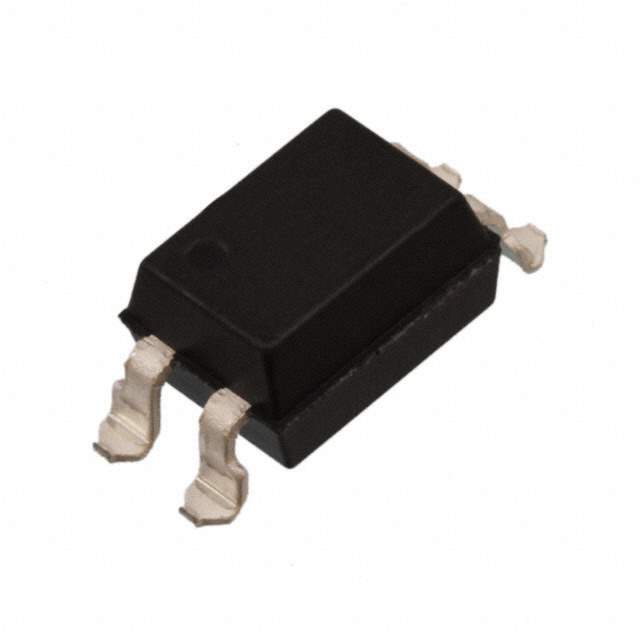

The IS2701-1D is a single-channel optocoupler manufactured by Isocom Components 2004 LTD. It is designed to provide electrical isolation between circuits, protecting sensitive components from high voltage transients and noise. This optocoupler consists of an LED and a phototransistor, allowing signals to be transmitted without a direct electrical connection.

Applications:

• Industrial Automation: Used in PLCs, motor drives, and other industrial control systems for signal isolation and protection.
• Power Supplies: Employed in switching power supplies and inverters to isolate the primary and secondary sides.
• Medical Equipment: Integrated into medical devices for patient safety and to isolate sensitive circuits.
• Data Communication: Utilized in data communication systems to prevent ground loops and noise interference.
• Instrumentation: Used in measurement and control equipment to isolate sensors and measurement circuits.

Features:

• Single Channel: Provides isolation for a single signal line.
• High Isolation Voltage: Offers a high isolation voltage, typically 5kVrms, for robust protection against high voltage transients.
• CTR (Current Transfer Ratio): Specified CTR ensures efficient signal transfer between the input and output.
• Fast Switching Speed: Enables high-speed data transmission and control applications.
• Compact Package: Available in a DIP (Dual In-Line Package) or SMD (Surface Mount Device) package for easy integration into PCBs.
• RoHS Compliant: Complies with RoHS directives, ensuring environmental safety.

Benefits:

• Electrical Isolation: Provides effective isolation between circuits, preventing damage from voltage spikes and noise.
• Enhanced Safety: Improves safety in high-voltage applications by isolating sensitive components.
• Improved Signal Integrity: Reduces noise and interference in signal transmission.
• Reliable Performance: Offers stable and reliable performance in a variety of operating conditions.
• Easy Integration: Simplifies circuit design and assembly with its standard package options.

Additional Details:

The IS2701-1D features a typical forward voltage of 1.2V and a forward current of 10mA. It has a collector-emitter voltage rating of 70V and a collector current rating of 50mA. The operating temperature range is typically -55°C to +100°C. The optocoupler is designed to meet various safety standards, including UL, VDE, and CSA.
