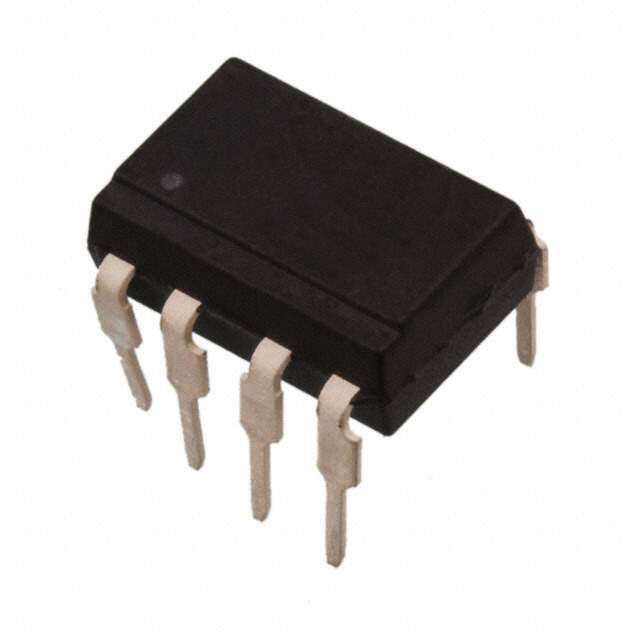

TLP521-2XGB Real Image
Same model may have multiple batches, images only for reference.

TLP521-2XGB

Part No TLP521-2XGB
Manufacturer Isocom Components 2004 LTD
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISO 5.3KV 2CH TRANS 8DIP
Datasheet
TLP521-2XGB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Isocom Components 2004 LTD
Packaging Tube/Rail
Status Active
Number of Channels 2
Isolation Voltage 5300Vrms
Minimum DC Current Transfer Ratio 100% @ 5mA
Maximum DC Current Transfer Ratio 600% @ 5mA
Rise and Fall Time 4μs, 3μs
Input Type DC
Output Type Transistor
Maximum Output Voltage 55V
Forward Voltage 1.15V
Continuous forward current- Max 50mA
Vce Saturation (Max) 400mV
Temperature Range - Operating -30°C to 100°C
Mounting Through Hole
Case / Package 8-DIP
Win Source Part Number 218251-TLP521-2XGB
Popularity Medium
Supply and Demand Status Balance
Quantity per package 4k pcs
Ultra Librarian 3D Model Ultra Librarian TLP521-2XGB CAD Model

Description

The Isocom Components 2004 LTD TLP521-2XGB is a high-quality optoisolator commonly used in electronic circuits.

  • Mounting: through-hole mounting
  • Output: transistor output
  • Channels: 2 channels
  • Isolation voltage: 5300Vrms
  • Minimum DC current transfer ratio: 100% @ 5mA
  • Maximum DC current transfer ratio: 600% @ 5mA
  • Maximum output voltage: 55V
  • Continuous forward current: 50mA
