CPC3703C IXYS – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

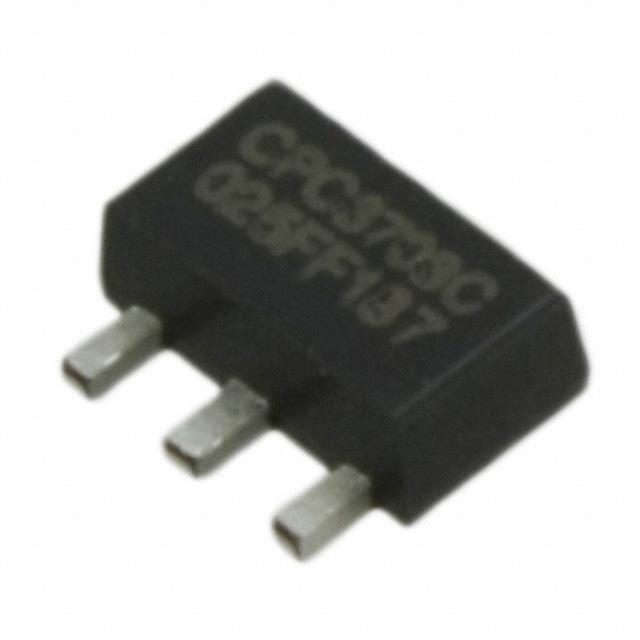

CPC3703C

Part No CPC3703C
Manufacturer IXYS
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 250V 360MA SOT89-3
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Package Tube
Product Status Obsolete
FET Type N-Channel, Depletion Mode
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 250 V
Current - Continuous Drain (Id) @ 25°C 360mA (Ta)
Drive Voltage (Max Rds On, Min Rds On) 0V
Rds On (Max) @ Id, Vgs 4Ohm @ 200mA, 0V
Vgs (Max) ±15V
Input Capacitance (Ciss) (Max) @ Vds 350 pF @ 25 V
Power Dissipation (Max) 1.6W (Ta)
Operating Temperature -55°C ~ 125°C (TJ)
Mounting Type Surface Mount
Supplier Device Package SOT-89-3
Package / Case TO-243AA
Ultra Librarian 3D Model Ultra Librarian CPC3703C CAD Model

Description

TO-243AA
