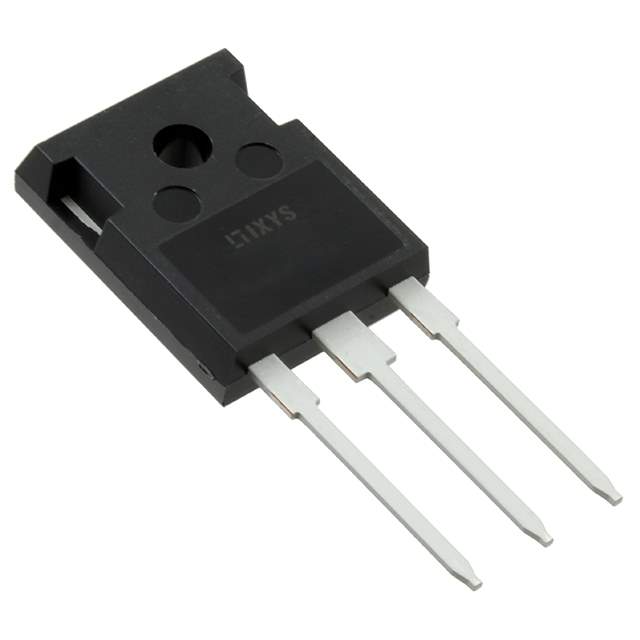

IXFH14N100

Name: IXFH14N100
Brand: IXYS
SKU: 608360
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	IXFH14N100
Manufacturer	IXYS
Catalog	FETs - Single
Description	HiPerFET Power MOSFETs \| MOSFET N-CH 1000V 14A TO-247
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	IXYS
Packaging	Tube
Status	Obsolete
Transistor Polarity	N-Channel
Technology	MOSFET
Vds - Drain-Source Breakdown Voltage	1000V
Id - Continuous Drain Current	14A
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Maximum) at Id, Vgs	750mOhm at 500mA, 10V
Gate Source Voltage(th) (Maximum) at Id	4.5V at 4mA
Gate Charge (Qg) (Maximum) at Vgs	220nC at 10V
Gate Source Voltage (Maximum)	±20V
Input Capacitance (Ciss) (Maximum) at Vds	4500pF at 25V
Power Dissipation (Maximum)	360W
Temperature Range - Operating	-55°C ~ 150°C
Mounting Style	Through Hole
Supplier Device Package	TO-247AD (IXFH)
Manufacturer Package	TO-247-3
Manufacturer Pack Quantity	30
MSL Level	1 (Unlimited)
Win Source Part Number	1191048-IXFH14N100
Manufacturer Homepage	www.ixys.com
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian IXFH14N100 CAD Model

Alternative Products

Description

The IXYS IXFH14N100 is an N-Channel MOSFET.

Maximum Power Dissipation: 360W
Drain-Source Breakdown Voltage: 1000V
Package: TO-247-3
Maximum Rds On: 750mOhm @ 500mA, 10V
Gate Charge: 220nC @ 10V
Input Capacitance: 4500pF @ 25V
Status: Obsolete
Supply and Demand Status: Limited
Manufacturer Pack Quantity: 30
MSL Level: 1 (unlimited)
