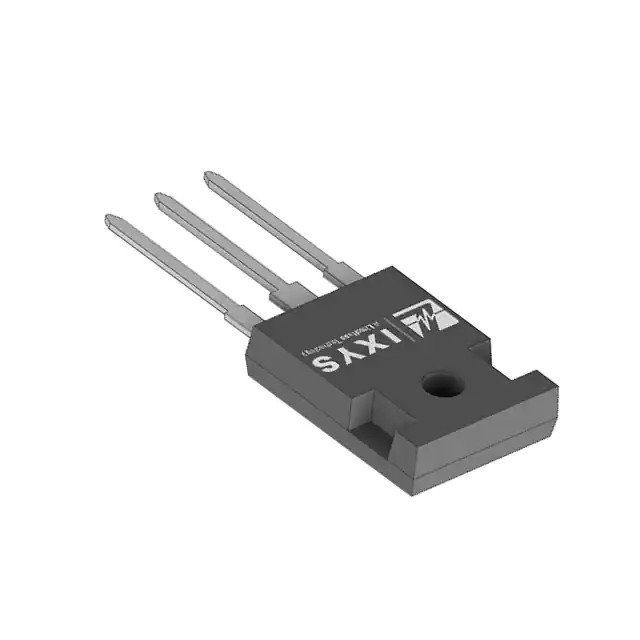

Same model may have multiple batches, images only for reference.

IXFH60N60X3

Name: IXFH60N60X3
Brand: IXYS
SKU: 1355001
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	IXFH60N60X3
Manufacturer	IXYS
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET ULTRA JCT 600V 60A TO247 / N-Channel 600 V 60A (Tc) 625W (Tc) Through Hole TO-247
Datasheet	IXFH60N60X3 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products - Transistors - FETs, MOSFETs - Single FETs, MOSFETs
Mfr	IXYS
Series	HiPerFET™, Ultra X3
Package	Tube
Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	600 V
Current - Continuous Drain (Id) @ 25°C	60A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	51mOhm @ 30A, 10V
Vgs(th) (Max) @ Id	5V @ 4mA
Gate Charge (Qg) (Max) @ Vgs	51 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	3450 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	625W (Tc)
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-247
Package / Case	TO-247-3
Base Product Number	IXFH60
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095
Win Source Part Number	1355001-IXFH60N60X3
Ultra Librarian 3D Model	Ultra Librarian IXFH60N60X3 CAD Model

Alternative Products

Description

The IXFH60N60X3 is an N-Channel MOSFET transistor designed for various applications. IXFH60N60X3 is from IXYS.

Channel Type: N-Channel
Vdss: 600V
Id: 60A
Rds On: 51mOhm
Operating Temperature: -55°C to 150°C
Series: HiPerFET™, Ultra X3
Package / Case: TO-247-3
