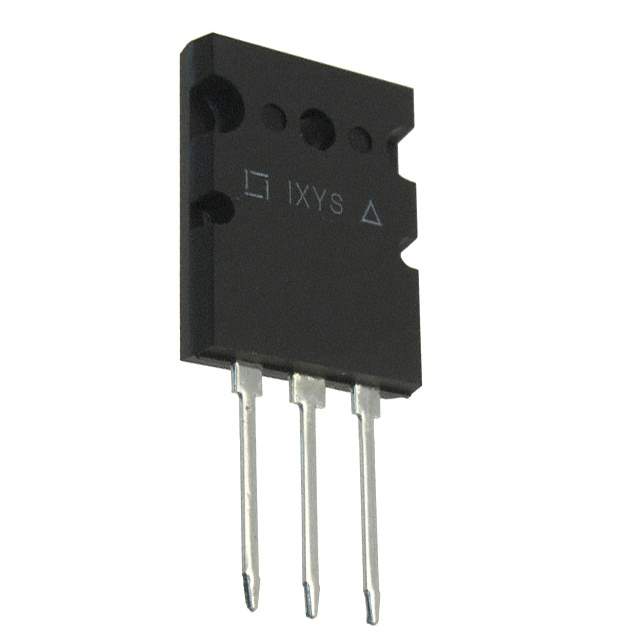

The IXYS IXFK44N50P is a medium popularity electronic component, manufactured by IXYS.

• Series: HiPerFET, PolarHT
• Packaging: Tube
• Mounting Style: Through Hole
• Operating Temperature Range: -55°C ~ 150°C (TJ)
• Package: TO-264-3, TO-264AA
• Technology: MOSFET
• Current Continuous Drain (Id) @ 25°C: 44A
• Drive Voltage (Max Rds On, Min Rds On): 10V
• Manufacturer Package: TO-264AA (IXFK)
• Channel Type: N
• Drain Source Voltage: 500V
• Vgs(th) (Maximum) @ Id: 5V @ 4mA
• Gate Charge (Qg) (Maximum) @ Vgs: 98nC @ 10V
• Input Capacitance (Ciss) (Maximum) @ Vds: 5440pF @ 25V
• Vgs (Maximum): ±30V
• Power Dissipation (Maximum) @ Tc: 658W
• Rds On (Maximum) @ Id, Vgs: 140 mOhm @ 22A, 10V
• Alternative Parts (Cross-Reference): STW24NK55Z, APT5014LVFRG, APT5014LVR, APT5014LVRG
• Introduction Date: April 10, 2014
• Estimated EOL Date: 2030
