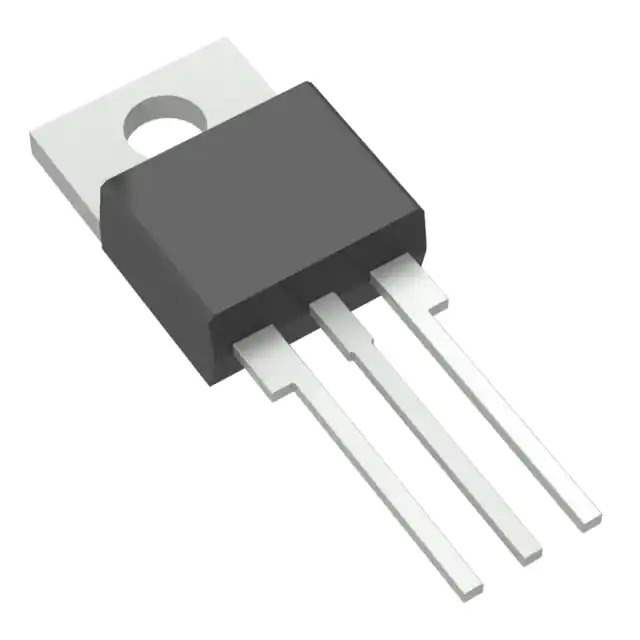

IXGP48N60A3 Real Image
Same model may have multiple batches, images only for reference.

IXGP48N60A3

Part No IXGP48N60A3
Manufacturer IXYS
Catalog IGBTs - Single
Description DISC IGBT PT-LOW FREQUENCY TO-22
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - IGBTs - Single IGBTs
Mfr IXYS
Series GenX3™
Package Tube
Product Status Active
IGBT Type PT
Voltage - Collector Emitter Breakdown (Max) 600 V
Current - Collector (Ic) (Max) 120 A
Current - Collector Pulsed (Icm) 300 A
Vce(on) (Max) @ Vge, Ic 1.35V @ 15V, 32A
Power - Max 300 W
Switching Energy 950µJ (on), 2.9mJ (off)
Input Type Standard
Gate Charge 110 nC
Td (on/off) @ 25°C 25ns/334ns
Test Condition 480V, 32A, 5Ohm, 15V
Reverse Recovery Time (trr) 30 ns
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case TO-220-3
Supplier Device Package TO-220
Base Product Number IXGP48
Standard Package 50 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 608519-IXGP48N60A3
Ultra Librarian 3D Model Ultra Librarian IXGP48N60A3 CAD Model

Description

The IXGP48N60A3 is a single IGBT in a TO-220-3 package.

  • Maximum Collector-Emitter Breakdown Voltage: 600 V
  • Maximum Collector Current: 120 A
  • Power Rating: 300 W
  • Fast Reverse Recovery Time: 30 ns
  • Series: GenX3™ from IXYS
  • Operating Temperature: -55°C to 150°C
  • California Prop 65: Not affected
  • Market Status: Active
