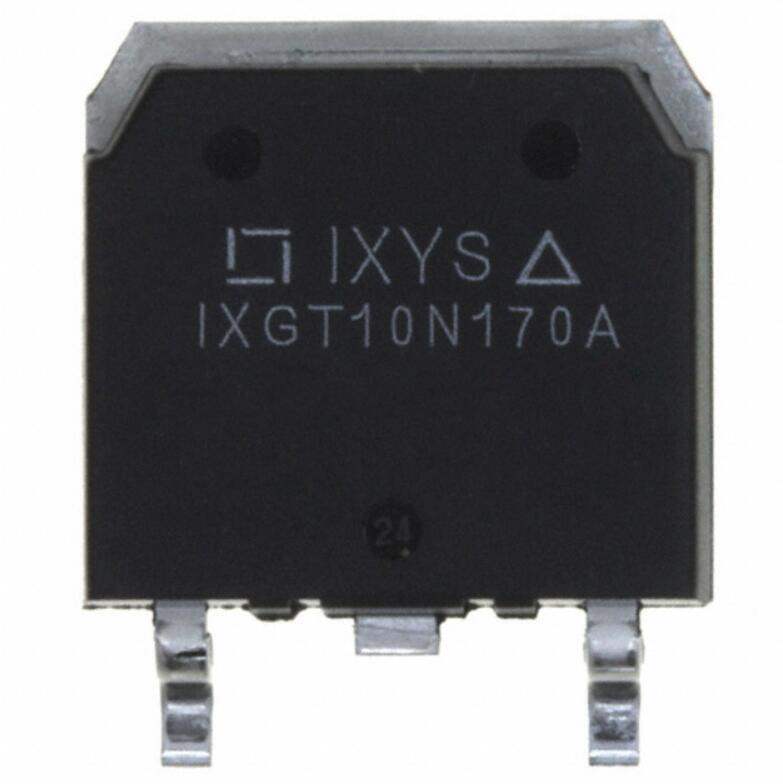

IXGT10N170A IXYS
Same model may have multiple batches, images only for reference.

IXGT10N170A

Part No IXGT10N170A
Manufacturer IXYS
Catalog Transistors (BJT) - Single
Description IGBT 1700V 10A 140W TO268
Datasheet
IXGT10N170A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1202811-IXGT10N170A
Win Source Part Number Cross
Manufacturer IXYS
Category Discrete Semiconductor Products Transistors IGBTs Single IGBTs
Package Tube
Product Status Active
IGBT Type NPT
Voltage - Collector Emitter Breakdown (Max) 1700 V
Current - Collector (Ic) (Max) 10 A
Current - Collector Pulsed (Icm) 20 A
Vce(on) (Max) @ Vge, Ic 6V @ 15V, 5A
Ultra Librarian 3D Model Ultra Librarian IXGT10N170A CAD Model

Description

The IXYS Single IGBT is a high-performance transistor designed for various applications in the electronics industry.

  • IGBT Type: NPT
  • Maximum Collector-Emitter Breakdown Voltage: 1700 V
  • Maximum Collector Current: 10 A
  • Pulsed Collector Current: 20 A
  • Vce(on): 6V @ 15V and 5A
  • Package: Tube
  • Product Status: Active
