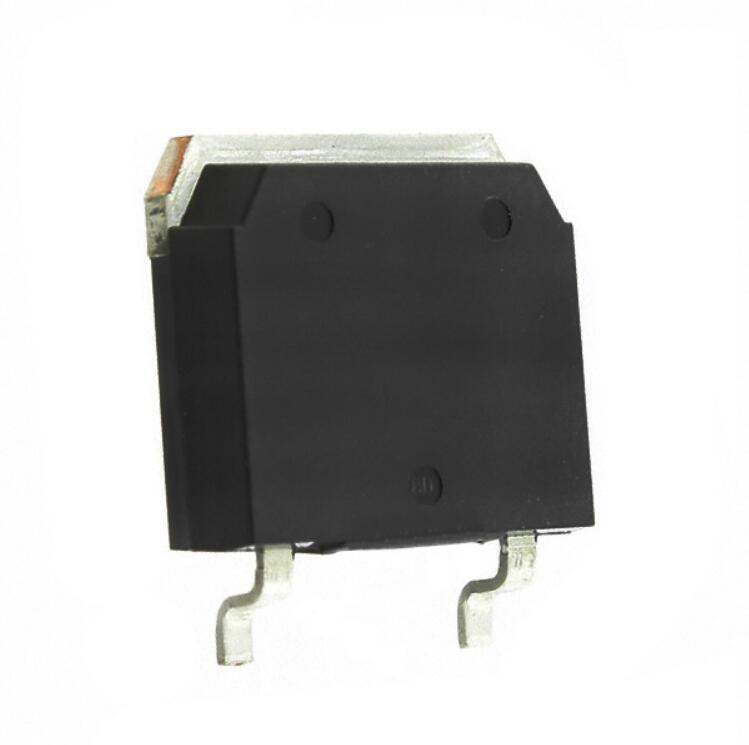

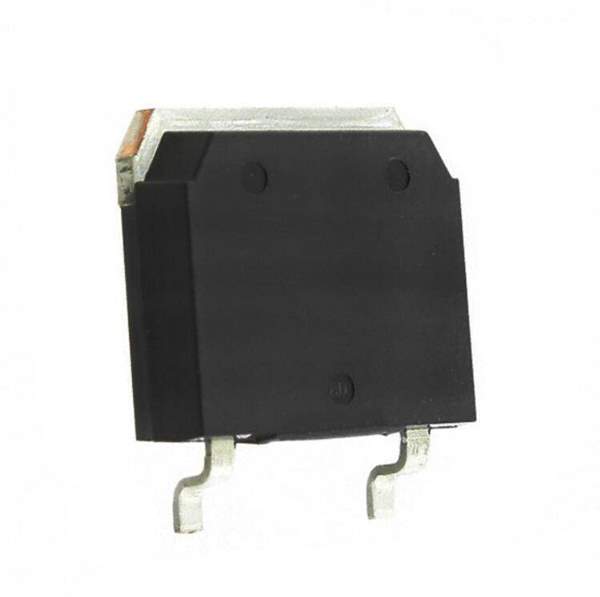

IXGT6N170AHV IXYS
Same model may have multiple batches, images only for reference.

IXGT6N170AHV

Part No IXGT6N170AHV
Manufacturer IXYS
Catalog Transistors (BJT) - Single
Description IGBT 1700V 6A 75W TO268
Datasheet
IXGT6N170AHV Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1201800-IXGT6N170AHV
Win Source Part Number Cross
Manufacturer IXYS
Category Discrete Semiconductor Products Transistors IGBTs Single IGBTs
Package Tube
Product Status Active
Voltage - Collector Emitter Breakdown (Max) 1700 V
Current - Collector (Ic) (Max) 6 A
Current - Collector Pulsed (Icm) 14 A
Vce(on) (Max) @ Vge, Ic 7V @ 15V, 3A
Power - Max 75 W
Ultra Librarian 3D Model Ultra Librarian IXGT6N170AHV CAD Model

Description

The IXYS Single IGBT is a high-power electronic component designed for discrete semiconductor applications. Bold the product name (e.g., BAV99S,135 → IXYS Single IGBT) and manufacturer (e.g., Nexperia USA Inc. → IXYS).

  • Maximum Power: 75 W
  • Voltage Breakdown: 1700 V
  • Current Rating: 6 A
  • Pulsed Current: 14 A
  • Vce(on): 7V @ 15V, 3A
  • Packaging: Tube
  • Product Status: Active
