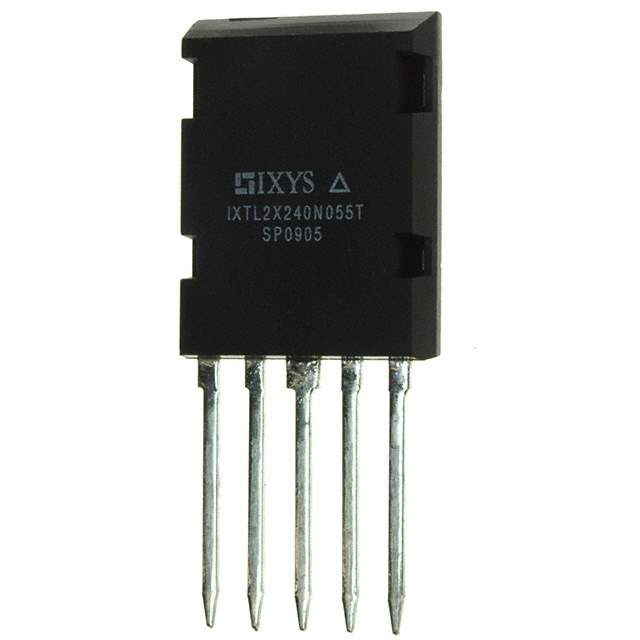

IXTL2X240N055T Real Image
Same model may have multiple batches, images only for reference.

IXTL2X240N055T

Part No IXTL2X240N055T
Manufacturer IXYS
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET 2N-CH 55V 140A ISOPLUS I5
Datasheet
IXTL2X240N055T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer IXYS
Packaging Tube/Rail
Status Obsolete(EOL)
FET Type 2 N-Channel (Dual)
FET Feature Standard
Drain-Source Breakdown Voltage 55V
Continuous Drain Current at 25°C 140A
Maximum Rds On at Id,Vgs 4.4 mOhm @ 50A, 10V
Gate-Source Threshold Voltage 4V @ 250μA
Max Gate Charge 170nC @ 10V
Max Input Capacitance 7600pF @ 25V
Maximum Power Dissipation 150W
Temperature Range - Operating -55°C to 175°C (TJ)
Mounting Through Hole
Case / Package ISOPLUSi5-Pak
Win Source Part Number 1005447-IXTL2X240N055T
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian IXTL2X240N055T CAD Model

Description

The IXYS 463481 is a dual N-channel FET that features a standard FET type.

  • Mounting Type: Through-hole
  • Packaging: Tube/rail
  • Category: Discrete Semiconductor Products
  • Maximum Power Dissipation: 150W
  • Drain-Source Breakdown Voltage: 55V
  • Continuous Drain Current @ 25°C: 140A
  • Gate-Source Threshold Voltage: 4V @ 250μA
  • Maximum Gate Charge: 170nC @ 10V
  • Maximum Input Capacitance: 7600pF @ 25V
  • Maximum Rds On @ Id, Vgs: 4.4 mOhm @ 50A, 10V
  • Operating Temperature Range: -55°C to 175°C (TJ)
  • Case/Package: ISOPLUSi5-Pak
  • Supply and Demand Status: Balanced
