The IXTP20N65X2 is an N-Channel MOSFET designed for use in discrete semiconductor products like transistors and FETs.

• Manufacturer: IXYS
• Type: N-Channel MOSFET
• Drain to Source Voltage (Vdss): 650 V
• Continuous Drain Current (Id) @ 25°C: 20A (Tc)
• Rds On (Max) @ Id, Vgs: 185mOhm @ 10A, 10V

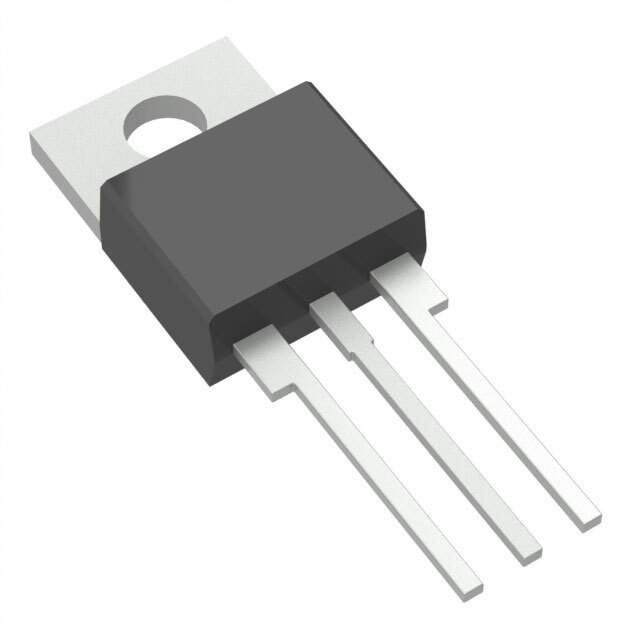

• Package Type: TO-220
• Gate Charge (Qg) (Max) @ Vgs: 27 nC @ 10 V
• Input Capacitance (Ciss) (Max) @ Vds: 1450 pF @ 25 V
• Operating Temperature Range: -55°C to 150°C (TJ)
• ECCN: EAR99 compliant
• MSL Level: Does not have an MSL level
• ROHS3: Compliant
