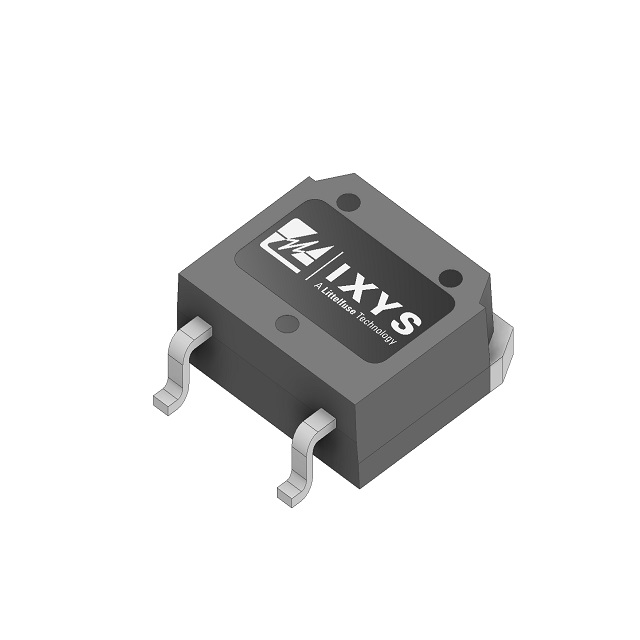

IXTT220N20X4HV

Name: IXTT220N20X4HV
Brand: IXYS
SKU: 1346866
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	IXTT220N20X4HV
Manufacturer	IXYS
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N-CH 200V 220A X4 TO268HV / N-Channel 200 V 220A (Tc) 800W (Tc) Surface Mount TO-268HV (IXTT)
Datasheet	IXTT220N20X4HV Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products - Transistors - FETs, MOSFETs - Single FETs, MOSFETs
Mfr	IXYS
Series	Ultra X4
Package	Tube
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	200 V
Current - Continuous Drain (Id) @ 25°C	220A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	5.5mOhm @ 110A, 10V
Vgs(th) (Max) @ Id	4.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	157 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	12300 pF @ 25 V
Power Dissipation (Max)	800W (Tc)
Temperature Range - Operating	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	TO-268HV (IXTT)
Package / Case	TO-268-3, D³Pak (2 Leads + Tab) , TO-268AA
Base Product Number	IXTT220
Standard Package	30
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095
Win Source Part Number	1346866-IXTT220N20X4HV
Ultra Librarian 3D Model	Ultra Librarian IXTT220N20X4HV CAD Model

Alternative Products

Description

The 1346866-IXTT220N20X4HV is an N-Channel MOSFET transistor from the Ultra X4 series.

Series: Ultra X4
Drain to Source Voltage: 200V
Power Dissipation: 800W (Tc)
Mounting Type: Surface Mount
Package: TO-268-3, D³Pak (2 Leads + Tab), TO-268AA
Gate-Source Voltage: ±20V
Operating Temperature: -55°C to 175°C (TJ)
Continuous Drain Current: 220A (Tc)
On-Resistance: 5.5mOhm @ 110A and 10V
Gate Charge: 157nC @ 10V
Input Capacitance: 12,300pF @ 25V
Ideal for: power supplies, motor control, and DC-DC converters.
