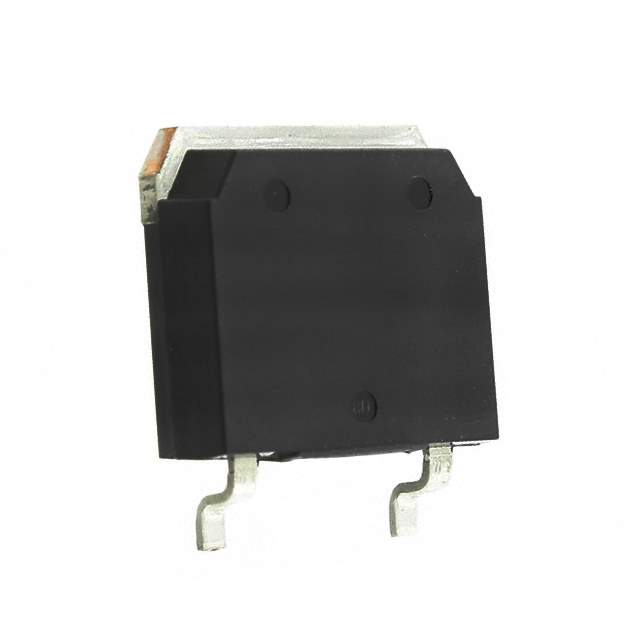

The IXTT4N150HV is a N-Channel MOSFET type manufactured by IXYS.

• FET Type: MOSFET
• Channel Type: N-Channel
• Package: TO-268-3, D³Pak (2 Leads + Tab), TO-268AA
• Mounting Type: Surface Mount
• Drain to Source Voltage (Vdss): 1500 V
• Power Dissipation (Max): 280W (Tc)
• Vgs (Max): ±30V
• Temperature Range: -55°C ~ 150°C (TJ)
• MSL Level: 3 (168 Hours)
• REACH: Unaffected
• HTSUS: 8541.29.0095
• Drive Voltage (Max Rds On, Min Rds On): 10V
• Current - Continuous Drain (Id) @ 25°C: 4A (Tc)
• Rds On (Max) @ Id, Vgs: 6Ohm @ 500mA, 10V
• Vgs(th) (Max) @ Id: 5V @ 250µA
• Gate Charge (Qg) (Max) @ Vgs: 44.5 nC @ 10 V
• Input Capacitance (Ciss) (Max) @ Vds: 1576 pF @ 25 V
