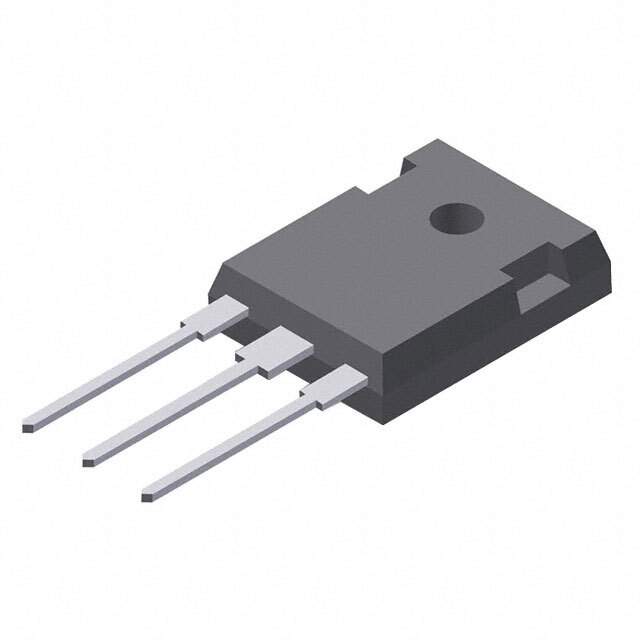

IXTX400N15X4 Real Image
Same model may have multiple batches, images only for reference.

IXTX400N15X4

Part No IXTX400N15X4
Manufacturer IXYS
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 150V 400A PLUS247 / N-Channel 150 V 400A (Tc) 1500W (Tc) Through Hole PLUS247™-3
Datasheet
IXTX400N15X4 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - FETs, MOSFETs - Single FETs, MOSFETs
Mfr IXYS
Series Ultra X4
Package Tube
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 150 V
Current - Continuous Drain (Id) @ 25°C 400A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Rds On (Max) @ Id, Vgs 3.1mOhm @ 100A, 10V
Vgs(th) (Max) @ Id 4.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs 430 nC @ 10 V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 14500 pF @ 25 V
Power Dissipation (Max) 1500W (Tc)
Temperature Range - Operating -55°C ~ 175°C (TJ)
Mounting Type Through Hole
Supplier Device Package PLUS247™-3
Package / Case TO-247-3 Variant
Base Product Number IXTX400
Standard Package 30
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 1346831-IXTX400N15X4
Ultra Librarian 3D Model Ultra Librarian IXTX400N15X4 CAD Model

Description

The IXTX400N15X4 is a MOSFET transistor from IXYS that is designed for use in discrete semiconductor products such as transistors, FETs, and MOSFETs.

  • FET Type: N-channel FET
  • Drain to Source Voltage (Vdss): 150 V
  • Power Dissipation (Max): 1500W (Tc)
  • Mounting Type: Through Hole
  • Package: TO-247-3 variant
  • Drive Voltage (Max Rds On, Min Rds On): 10V
  • Current - Continuous Drain (Id) @ 25°C: 400A (Tc)
  • Rds On (Max) @ Id, Vgs: 3.1mOhm @ 100A, 10V
  • Vgs(th) (Max) @ Id: 4.5V @ 1mA
  • Gate Charge (Qg) (Max) @ Vgs: 430 nC @ 10 V
  • Input Capacitance (Ciss) (Max) @ Vds: 14500 pF @ 25 V
