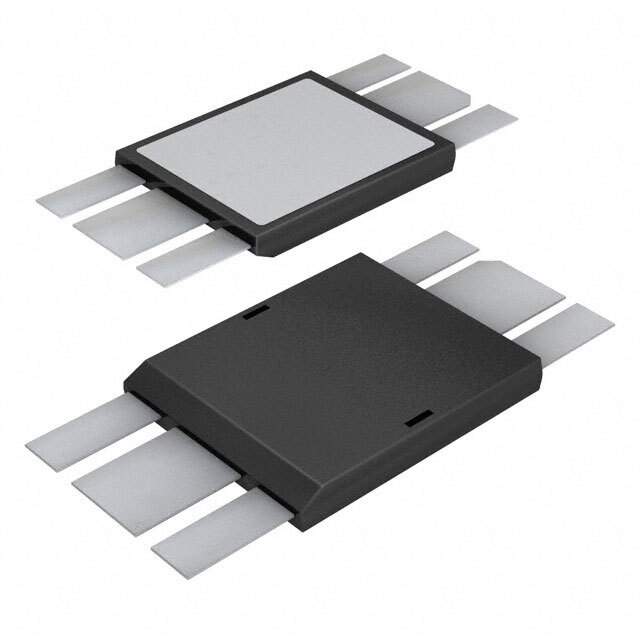

Same model may have multiple batches, images only for reference.

IXTZ550N055T2

Name: IXTZ550N055T2
Brand: IXYS
SKU: 1346721
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	IXTZ550N055T2
Manufacturer	IXYS
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N-CH 55V 550A DE475 / N-Channel 55 V 550A (Tc) 600W (Tc) Surface Mount DE475
Datasheet	IXTZ550N055T2 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products - Transistors - FETs, MOSFETs - Single FETs, MOSFETs
Mfr	IXYS
Series	TrenchT2™
Package	Tube
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	55 V
Current - Continuous Drain (Id) @ 25°C	550A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	1mOhm @ 100A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	595 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	40000 pF @ 25 V
Power Dissipation (Max)	600W (Tc)
Temperature Range - Operating	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	DE475
Package / Case	6-SMD, Flat Leads
Base Product Number	IXTZ550
Standard Package	20
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095
California Prop 65	Warning Information
Win Source Part Number	1346721-IXTZ550N055T2
Ultra Librarian 3D Model	Ultra Librarian IXTZ550N055T2 CAD Model

Alternative Products

Description

The IXTZ550N055T2 is an N-channel MOSFET transistor from the TrenchT2 series, designed for use in discrete semiconductor products such as FETs and MOSFETs.

Drain-to-Source Voltage: 55V
Maximum Power Dissipation: 600W
Package: 6-SMD, Flat Leads
Mounting Type: Surface Mount
Temperature Range: -55°C to 175°C
Continuous Drain Current: 550A (Tc)
Maximum Rds On: 1mOhm @ 100A, 10V
Gate Charge: 595 nC @ 10 V
Input Capacitance: 40000 pF @ 25 V
