Same model may have multiple batches, images only for reference.

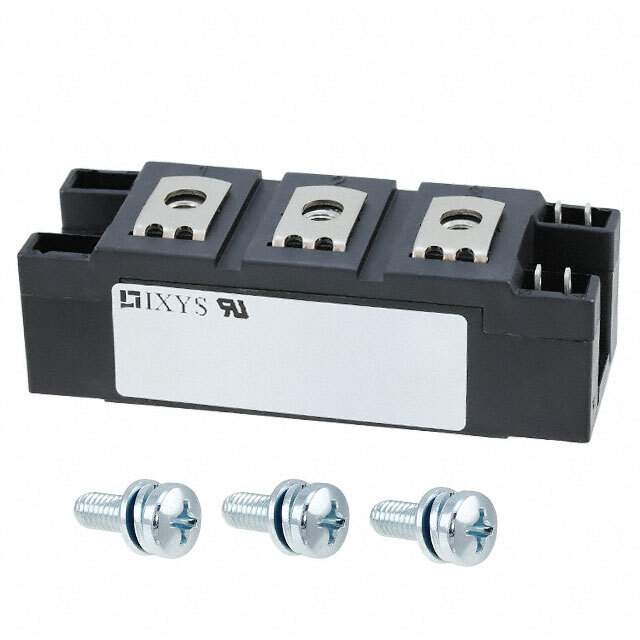

MCC132-16IO1 Real Image
Same model may have multiple batches, images only for reference.

MCC132-16IO1

Part No MCC132-16IO1
Manufacturer IXYS
Catalog SCRs - Single - Modules
Description Thyristor Modules Thyristor/Diode Modules | THYRISTOR MOD 1600V 2X138A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer IXYS
Packaging Bulk
Structure Series Connection - All SCRs
Number of SCRs, Diodes 2 SCRs
Voltage - Off State 1.6kV
Current - On State (It (AV)) (Maximum) 130A
Current - On State (It (RMS)) (Maximum) 300A
Voltage - Gate Trigger (Vgt) (Maximum) 2.5V
Current - Gate Trigger (Igt) (Maximum) 150mA
Current - Non Rep. Surge 50, 60Hz (Itsm) 4750A, 5080A
Current - Hold (Ih) (Maximum) 200mA
Temperature Range - Operating -40°C ~ 125°C
Mounting Style Chassis Mount
Manufacturer Package Y4-M6
Family Part Number MC*132
Manufacturer Pack Quantity 6
MSL Level 1 (Unlimited)
Win Source Part Number 1220588-MCC132-16IO1
Manufacturer Homepage www.ixys.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian MCC132-16IO1 CAD Model

Description

The MCC132-16IO1 is a series connection all SCRs manufactured by IXYS.

  • Product Type: Discrete semiconductor
  • Applications: Electronic circuits that require high voltage and current handling capabilities
  • Voltage Rating: 1.6kV
  • Non-Repetitive Surge Current: 4750A @ 50Hz and 5080A @ 60Hz
  • Current Rating: 300A
  • Gate Trigger Voltage: 2.5V
  • Temperature Range: -40°C to 125°C
  • Package: Chassis mount
