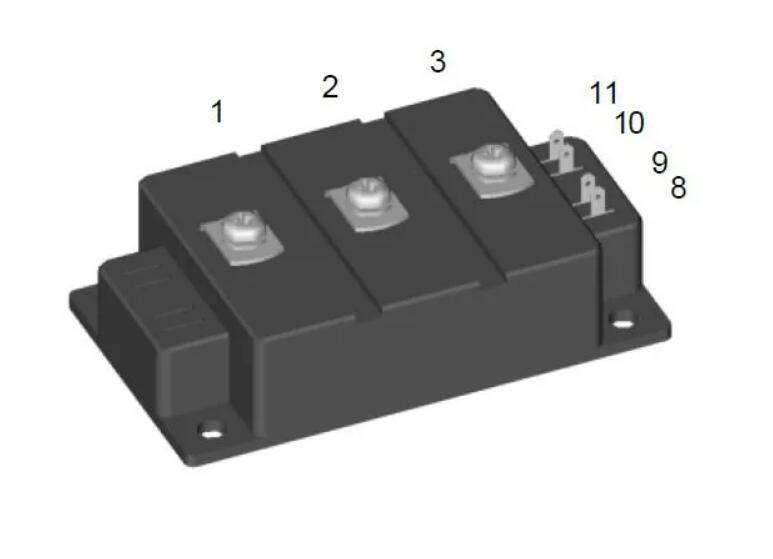

Same model may have multiple batches, images only for reference.
MII300-12A4IXYS
Same model may have multiple batches, images only for reference.

MII300-12A4

Part No MII300-12A4
Manufacturer IXYS
Catalog IGBTs - Modules
Description IGBT MOD 1200V 330A 1380W Y3DCB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number 2001275-MII300-12A4
Win Source Part Number Cross
Manufacturer IXYS
Category Discrete Semiconductor Products Transistors IGBTs IGBT Modules
Package Box
Product Status Active
IGBT Type NPT
Configuration Half Bridge
Current - Collector (Ic) (Max) 330 A
Power - Max 1380 W
Vce(on) (Max) @ Vge, Ic 2.7V @ 15V, 200A
Ultra Librarian 3D Model Ultra Librarian MII300-12A4 CAD Model

Description

The IXYS IGBT module is a high-performance semiconductor component used in various power electronics applications. It features a half-bridge configuration and NPT IGBT type. The maximum power it can handle is 1380 W, and the maximum collector current is 330 A. It has a Vce(on) of 2.7V at 15V and 200A. The IXYS IGBT module is an active product and comes in a box package.
