Same model may have multiple batches, images only for reference.

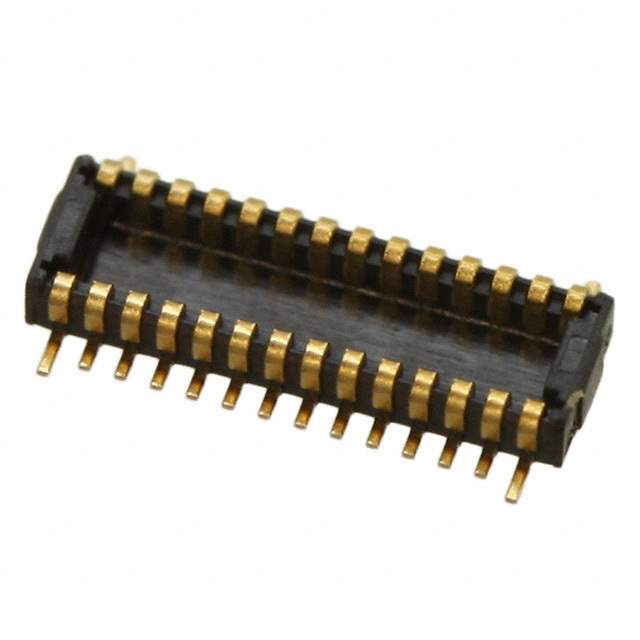

AA03-P024VA2-R6000 Real Image
Same model may have multiple batches, images only for reference.

AA03-P024VA2-R6000

Part No AA03-P024VA2-R6000
Manufacturer JAE Electronics
Catalog Custom Parts (0 - A)
Description Conn Plug 0.4MM 24POS Dual SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Contact Plating Gold
Flammability Rating UL94 V-0
Housing Color Black
Housing Material Plastic
Lead Free Lead Free
Lead Pitch 400 µm
Number of Contacts 24
Number of Positions 24
Number of Rows 2
Packaging Cut Tape
RoHS Compliant
Win Source Part Number 1190642-AA03-P024VA2-R6000
Categories Custom Parts
Manufacturer JAE Electronics
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian AA03-P024VA2-R6000 CAD Model

Description

The JAE Electronics AA03P024VA2R6000 is a custom part with 24 positions and two rows.

  • Positions: 24
  • Rows: 2
  • Housing Color: Black
  • Housing Material: Plastic
  • Contact Plating: Gold
  • Lead Pitch: 400 µm
  • RoHS Compliant: Yes
  • Popularity: Medium
  • Supply and Demand Status: Limited
