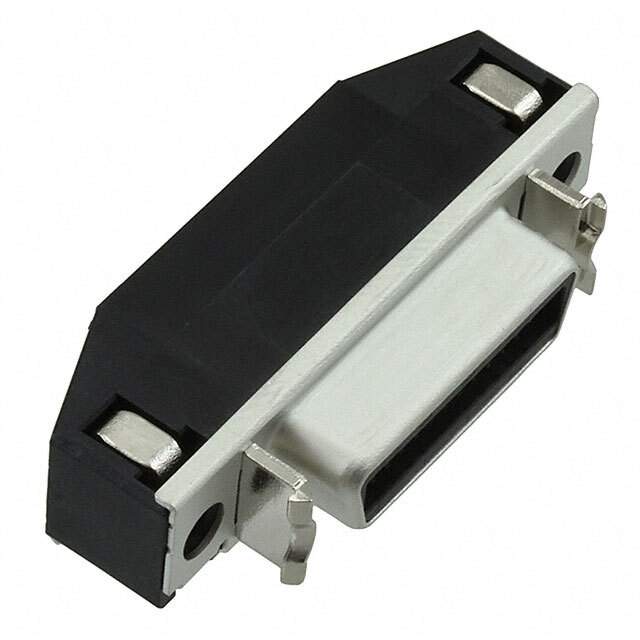

DF02R026NA3

Part No DF02R026NA3
Manufacturer JAE Electronics
Catalog D - SUB, D - SHAPED connectors
Description CONN RCPT 26POS R/A SOLDER / 26 Position Receptacle Connector Panel Mount, Through Hole, Right Angle Solder
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - Centronics Connectors
Mfr JAE Electronics
Series DF02
Package Tray
Connector Style Outer Shroud Contacts
Connector Type Receptacle
Number of Positions 26
Number of Rows 2
Mounting Type Panel Mount, Through Hole, Right Angle
Termination Solder
Flange Feature Housing/Shell (M2.6)
Features Board Lock
Contact Finish Gold
Contact Finish Thickness 3.94µin (0.10µm)
Base Product Number DF02R026
Standard Package 100
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
California Prop 65 Warning Information
Win Source Part Number 1336766-DF02R026NA3
Ultra Librarian 3D Model Ultra Librarian DF02R026NA3 CAD Model

Description

The JAE Electronics DF02 series is a 26-position Centronics connector with board lock feature. JAE Electronics

  • Positions: 26
  • Connector Type: Centronics
  • Series: DF02
  • Rows: 2
  • Termination: Solder
  • Contact Finish: Gold
  • Shroud: Outer Shroud Contacts
  • Mounting: Panel Mounting
  • Flange Feature: Housing/Shell (M2.6)
  • Compliance: California Prop 65 Compliant
