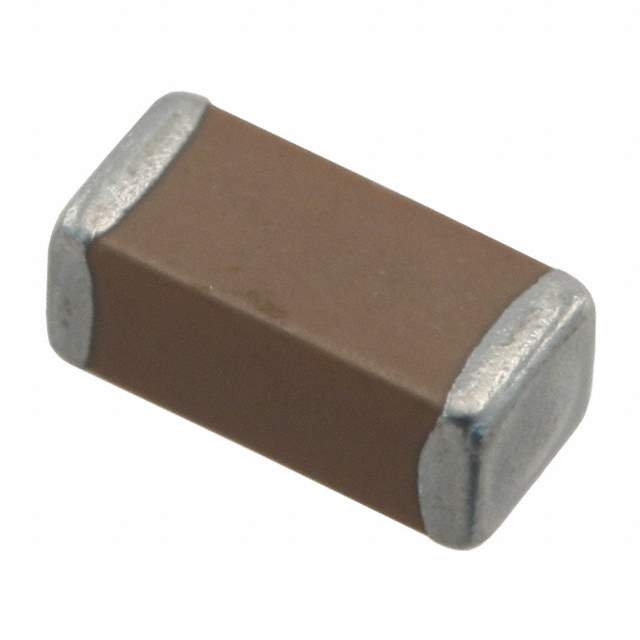

302R29W102KF3E-****-SC Real Image
Same model may have multiple batches, images only for reference.

302R29W102KF3E-****-SC

Part No 302R29W102KF3E-****-SC
Manufacturer Johanson Dielectrics Inc.
Catalog Ceramic Capacitors
Description CAP CER 1000PF 3KV X7R 1808 / 1000 pF ±10% 250VAC Ceramic Capacitor X7R 1808 (4520 Metric)
Datasheet
302R29W102KF3E-****-SC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Manufacturer Johanson Dielectrics Inc.
Packaging Reel - TR
Capacitance 1000 pF
Tolerance ±10%
Voltage - Rated 250VAC
Temperature Coefficient X7R
Temperature Range - Operating -55°C ~ 125°C
Features Soft Termination
Ratings X2, Y3
Applications Safety, Boardflex Sensitive
Mounting Surface Mount, MLCC
Case / Package 1808 (4520 Metric)
Size / Dimension 0.189" L x 0.080" W (4.80mm x 2.03mm)
Thickness (Max) 0.085" (2.16mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0020
Other Part Number 709-1314-6,Q7720994,302R29W102KF3ESC,709-1314-1,709-1314-2
Standard Package 2,000
Win Source Part Number 1329877-302R29W102KF3E-****-SC
Ultra Librarian 3D Model Ultra Librarian 302R29W102KF3E-****-SC CAD Model

Description

The Johanson Dielectrics Inc. 1329877-302R29W102KF3E-****-SC is a ceramic capacitor that is ideal for use in safety and boardflex sensitive applications.

  • Capacitance: 1000 pF
  • Tolerance: ±10%
  • Rated Voltage: 250VAC
  • Temperature Coefficient: X7R
  • Rating: X2 and Y3
  • Size: 0.189" L x 0.080" W (4.80mm x 2.03mm)
  • Thickness: 0.085" (2.16mm)
  • Mounting Type: Surface Mount
  • Case/Package: 1808 (4520 Metric)
  • Features: Soft Termination
  • Packaging: Reel
  • Standard Package: 2,000
  • Temperature Range: -55°C ~ 125°C
  • ROHS3 Compliant: Yes
