B05B-XASK-1N(LF)(SN) JST Sales America Inc.
Same model may have multiple batches, images only for reference.

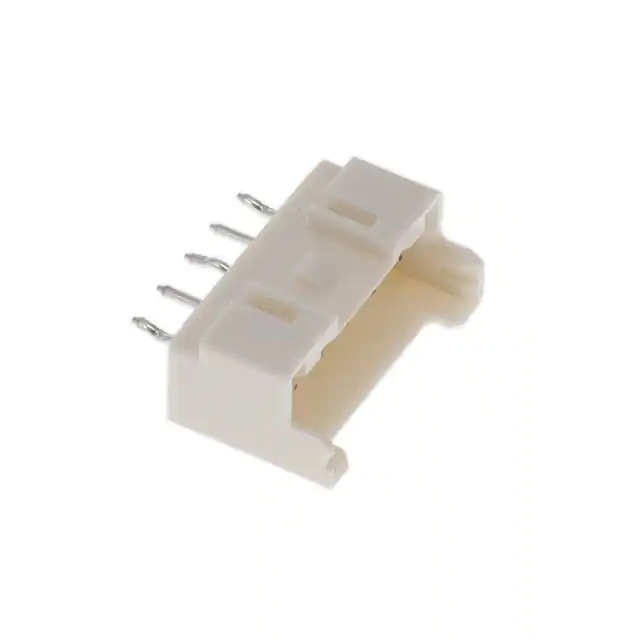

B05B-XASK-1N(LF)(SN)

Part No B05B-XASK-1N(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER VERT 5POS 2.5MM / Connector Header Through Hole 5 position 0.098" (2.50mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series XA
Package Bulk
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.098" (2.50mm)
Number of Positions 5
Number of Rows 1
Row Spacing - Mating -
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Press-Fit, Solder
Fastening Type Locking Ramp
Contact Length - Mating -
Contact Length - Post 0.134" (3.40mm)
Overall Contact Length -
Insulation Height 0.346" (8.80mm)
Contact Shape Circular
Contact Finish - Mating Tin
Contact Finish Thickness - Mating -
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA66), Nylon 6/6, Glass Filled
Features -
Temperature Range - Operating -25°C ~ 85°C
Ingress Protection -
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 3A
Voltage Rating 250V
Mated Stacking Heights -
Contact Finish Thickness - Post -
Applications -
Base Product Number B05B-XAS
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1362511-B05B-XASK-1N(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian B05B-XASK-1N(LF)(SN) CAD Model

Description

The 1362511-B05B-XASK-1N(LF)(SN) is a male pin header connector manufactured by JST Sales America Inc.

  • Series: XA
  • Mounting Type: Through-Hole
  • Positions: 5
  • Rows: 1
  • Contact Termination: Press-Fit and Solder
  • Pitch: 0.098" (2.50mm)
  • Shroud: 4 Walls
  • Current Rating: 3A
  • Voltage Rating: 250V
  • Application: Board to Cable/Wire
  • Contact Finish: Tin
  • Contact Material: Copper Alloy
  • Insulation Material: Polyamide (PA66), Nylon 6/6, Glass-Filled
  • Flammability Rating: UL94 V-0
  • Status: Active
  • Packaging: Bulk
  • HTSUS: 8536.69.4040
  • ECCN: EAR99
