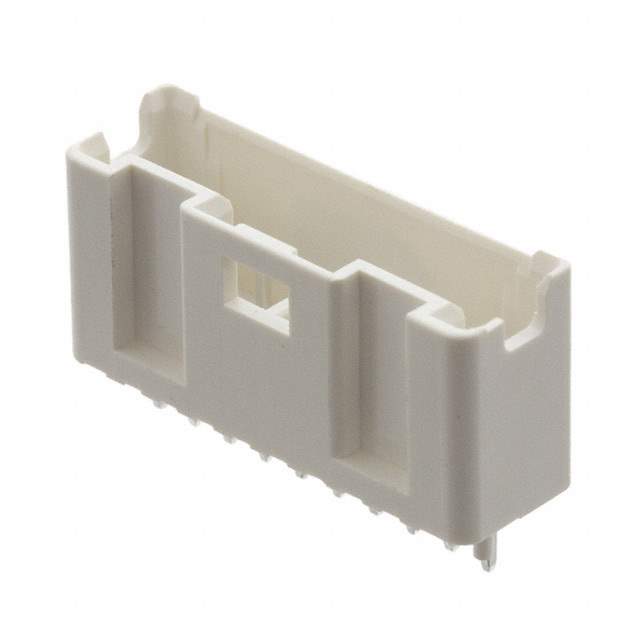

B10B-PNISK-1A (LF)(SN) (F) Real Image
Same model may have multiple batches, images only for reference.

B10B-PNISK-1A (LF)(SN) (F)

Part No B10B-PNISK-1A (LF)(SN) (F)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER VERT 10POS 2MM / Connector Header Through Hole 10 position 0.079" (2.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series PNI
Package Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 10
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Press-Fit, Solder
Fastening Type Latch Lock
Contact Length - Post 0.134" (3.40mm)
Insulation Height 0.402" (10.20mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA66), Nylon 6/6, Glass Filled
Features Board Guide
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 3A
Voltage Rating 100V
Mated Stacking Heights 12.25mm
Base Product Number B10B-PNI
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names B10BPNISK1ALFSNF,455-2738
Standard Package 250
Win Source Part Number 1049234-B10B-PNISK-1A (LF)(SN) (F)
Ultra Librarian 3D Model Ultra Librarian B10B-PNISK-1A (LF)(SN) (F) CAD Model

Description

The 1049234-B10B-PNISK-1A (LF)(SN) (F) is a rectangular connector header manufactured by JST Sales America Inc.

  • Number of Positions: 10
  • Style: Board to Cable/Wire
  • Contact Type: Male Pin
  • Termination: Press-Fit, Solder
  • Current Rating (Amps): 3A
  • Voltage Rating: 100V
  • Flammability Rating: UL94 V-0
  • Packaging: Tray
  • Standard Package: 250
