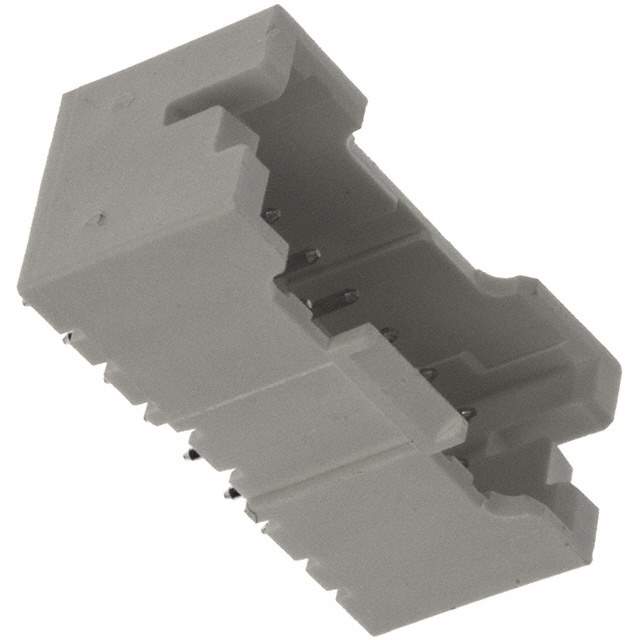

B14B-XADSS-N(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

B14B-XADSS-N(LF)(SN)

Part No B14B-XADSS-N(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER VERT 14POS 2.5MM  /  Connector Header Through Hole 14 position 0.098" (2.50mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series XAD
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.098" (2.50mm)
Number of Positions 14
Number of Rows 2
Row Spacing - Mating 0.098" (2.50mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Locking Ramp
Contact Length - Post 0.138" (3.50mm)
Insulation Height 0.398" (10.11mm)
Contact Shape Circular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA66), Nylon 6/6, Glass Filled
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 3A
Voltage Rating 250V
Mated Stacking Heights 13.8mm
Base Product Number B14B-XAD
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names 455-2008,B14BXADSSNLFSN
Standard Package 150
Win Source Part Number 1047373-B14B-XADSS-N(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian B14B-XADSS-N(LF)(SN) CAD Model

Description

The 1047373-B14B-XADSS-N(LF)(SN) is a 14 position male pin header connector manufactured by JST Sales America Inc.

  • Series: It is part of the XAD series
  • Fastening Type: and features a locking ramp fastening type.
  • Contact Material: The contact material is copper alloy with a tin finish.
  • Voltage Rating: This connector has a voltage rating of 250V
  • Current Rating: and a current rating of 3A.
  • Application: It is suitable for board to cable/wire style applications
  • Mounting Type: and has a through hole mounting type.
  • Insulation Material: The insulation material is made of Polyamide (PA66), Nylon 6/6, Glass Filled with a natural insulation color.
  • Contact Shape: The contact shape is circular
  • Temperature Range: with a temperature range of -25°C to 85°C.
