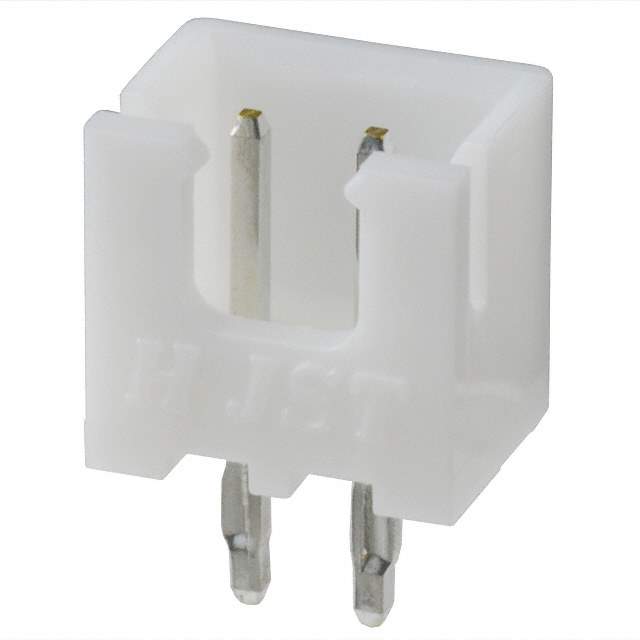

B2B-XH-A(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

B2B-XH-A(LF)(SN)

Part No B2B-XH-A(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER XH TOP 2POS 2.5MM
Datasheet
B2B-XH-A(LF)(SN) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Packaging Bulk
Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 2.50mm
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 2
Number of Positions Loaded All
Number of Rows 1
Mounting Through Hole
Termination Press-Fit, Solder
Fastening Type Detent Lock
Contact Length - Post 0.134" (3.40mm)
Insulation Height 0.276" (7.00mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Insulation Material Polyamide (PA66), Nylon 6/6
Temperature Range - Operating -25°C to 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating 3A
Voltage Rating 250V
Mated Stacking Heights 9.8mm
Win Source Part Number 095685-B2B-XH-A(LF)(SN)
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian B2B-XH-A(LF)(SN) CAD Model

Description

Overview

The B2B-XH-A(LF)(SN) connector combines advanced materials and innovative design to offer superior connectivity solutions. It excels in providing lead-free (LF) options, meeting environmentally-conscious standards.

Features and Benefits

  • Lead-free Composition: A safer and more environmentally friendly component, suitable for sensitive applications.
  • Corrosion Resistance: Sn-plated contacts that provide an exceptional barrier against corrosion.
  • User-friendly: Easy to install and maintain, reducing labor costs and improving efficiency.

Applications

  • Renewable Energy Systems
  • Automotive Electronics
  • Aerospace and Defense
  • Healthcare Devices

Additional Details

Designed to comply with stringent regulatory requirements, this connector supports eco-friendly initiatives while maintaining top-notch performance.
