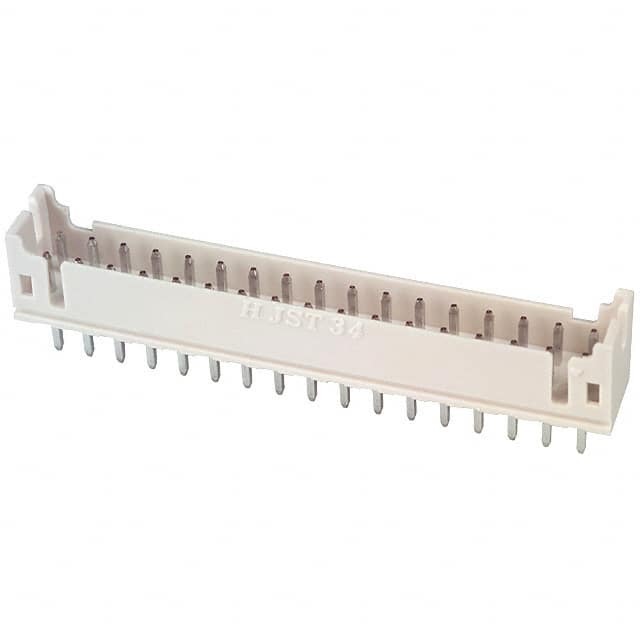

B34B-PHDSS(LF)(SN)

Name: B34B-PHDSS(LF)(SN)
Brand: JST Sales America Inc.
SKU: 1293278
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	B34B-PHDSS(LF)(SN)
Manufacturer	JST Sales America Inc.
Catalog	Rectangular Connectors
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	JST Sales America Inc.
Series	PHD
Package	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	34
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Detent Lock
Contact Length - Mating	0.114" (2.90mm)
Contact Length - Post	0.118" (3.00mm)
Overall Contact Length	0.291" (7.40mm)
Insulation Height	0.256" (6.50mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Polyamide (PA), Nylon, Glass Filled
Temperature Range - Operating	-25°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	3A
Voltage Rating	250V
Mated Stacking Heights	8.8mm
Base Product Number	B34B-PHD
Other Names	(D)B34B-PHDSS(LF)(SN),455-1774,B34BPHDSSLFSN,B34B-PHDSS-B(LF)(SN)
Standard Package	250
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1293278-B34B-PHDSS(LF)(SN)
Ultra Librarian 3D Model	Ultra Librarian B34B-PHDSS(LF)(SN) CAD Model

Alternative Products

Description

The 1293278-B34B-PHDSS(LF)(SN) is a 34-position header connector from JST Sales America Inc.

Series: PHD
Positions: 34
Style: Board-to-Cable/Wire, Board-to-Wire
Contact Type: Male Pins
Contact Material: Copper Alloy
Positions Loaded: All positions
Rows: 2
Termination: Solder
Fastening Type: Detent Lock
Package: Bulk
Voltage Rating: 250V
Current Rating: 3A
Insulation Material: Polyamide (PA), nylon, glass filled
Flammability Rating: UL94 V-0
Mating Pitch: 0.079 inches (2.00mm)
Contact Finish: Tin
Contact Shape: Square
Temperature Range: -25°C to 85°C
