Same model may have multiple batches, images only for reference.

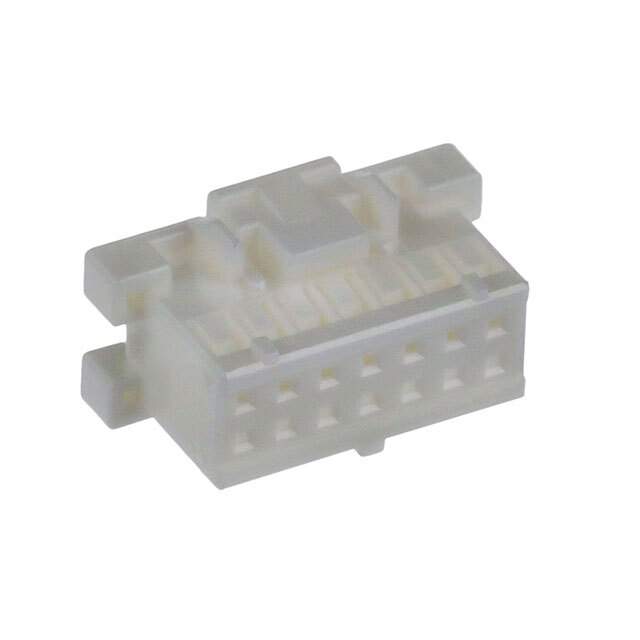

XADRP-14V Real Image
Same model may have multiple batches, images only for reference.

XADRP-14V

Part No XADRP-14V
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Housings
Mfr JST Sales America Inc.
Series XAD
Package Bulk
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 14
Pitch 0.098" (2.50mm)
Number of Rows 2
Row Spacing 0.098" (2.50mm)
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Fastening Type Latch Lock
Color Natural
Note Contacts Not Included
Base Product Number XADR
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8538.90.6000
Win Source Part Number 1316249-XADRP-14V
Ultra Librarian 3D Model Ultra Librarian XADRP-14V CAD Model

Description

The XAD series 14-position female socket receptacle connector is a high-quality connector designed for use in electronic devices.

  • Fastening Type: Latch Lock
  • Material: Polyamide
  • Pitch: 0.098 inches (2.50mm)
  • Application: Free-Hanging (In-Line)
  • Shrouded: 4 Walls
  • Rows: 2
  • Row Spacing: 0.098 inches (2.50mm)
  • Current Rating: 3A
  • Voltage Rating: 250V
  • Operating Temperature: -25°C to 85°C
