Same model may have multiple batches, images only for reference.

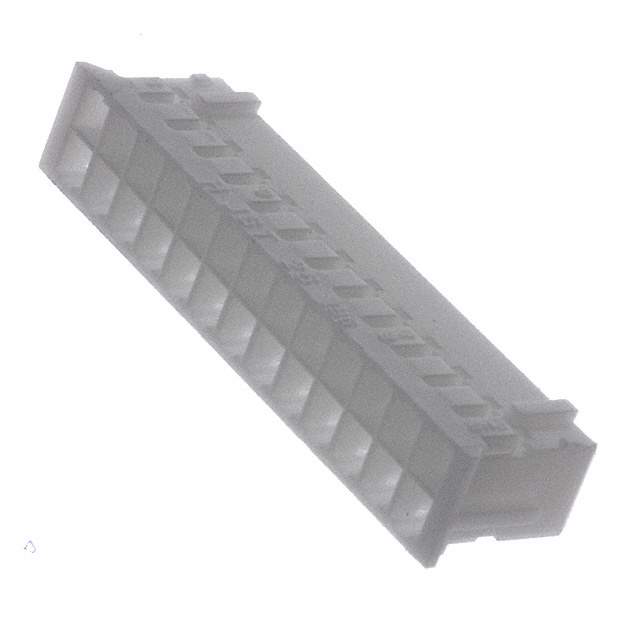

PHDR-26VS Real Image
Same model may have multiple batches, images only for reference.

PHDR-26VS

Part No PHDR-26VS
Manufacturer JST Sales America Inc.
Catalog Rectangular - Board to Board Connectors
Description CONN HOUSING PHD 26POS 2MM DUAL / 26 Rectangular Connectors - Housings Receptacle Natural 0.079" (2.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Housings
Mfr JST Sales America Inc.
Series PHD
Package Bulk
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 26
Pitch 0.079" (2.00mm)
Number of Rows 2
Row Spacing 0.079" (2.00mm)
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Color Natural
Note Contacts Not Included
Base Product Number PHDR-26V
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8538.90.6000
Other Names 455-1178,PHDR26VS,(G)PHDR-26VS
Standard Package 1,000
Win Source Part Number 1000915-PHDR-26VS
Ultra Librarian 3D Model Ultra Librarian PHDR-26VS CAD Model

Description

The JST Sales America Inc. electronic component with Win Source Part Number 1000915-PHDR-26VS is a rectangular connector housing belonging to the PHD series.

  • Manufacturer: JST Sales America Inc.
  • Series: PHD
  • Positions: 26
  • Pitch: 0.079 inches (2.00mm)
  • Color: Natural
  • Contact Type: Female Socket
  • Type: Receptacle
  • Rows: 2
  • Row Spacing: 0.079 inches (2.00mm)
  • Contacts Included: No
  • Packaging: Bulk
  • Mounting Type: Free Hanging (In-Line)
  • ECCN: EAR99
  • HTSUS: 8538.90.6000
