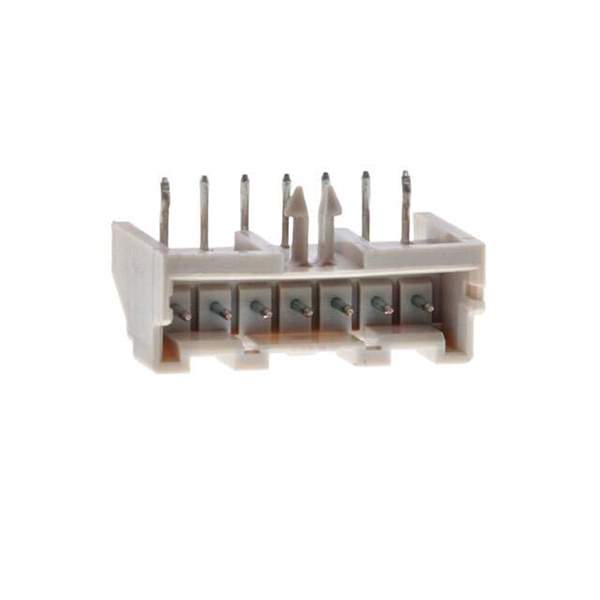

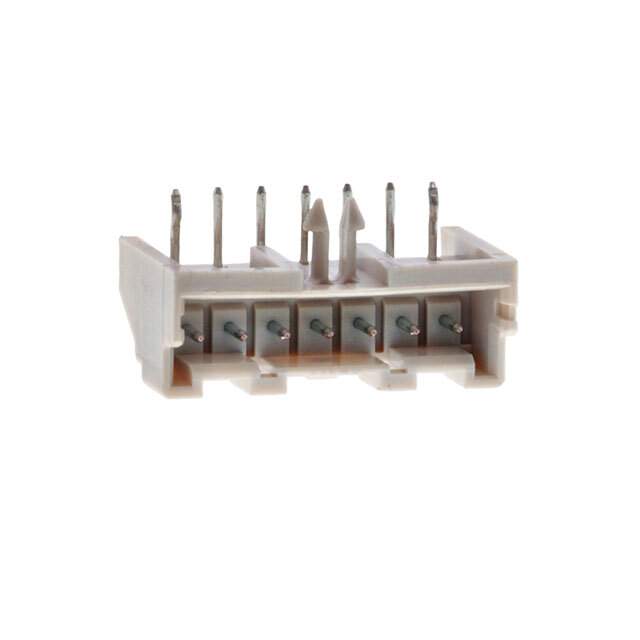

S07B-XASK-1(LF)(SN)

Name: S07B-XASK-1(LF)(SN)
Brand: JST Sales America Inc.
SKU: 1089512
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	S07B-XASK-1(LF)(SN)
Manufacturer	JST Sales America Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER R/A 7POS 2.5MM / Connector Header Through Hole, Right Angle 7 position 0.098" (2.50mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	JST Sales America Inc.
Series	XA
Package	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.098" (2.50mm)
Number of Positions	7
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole, Right Angle
Termination	Press-Fit, Solder
Fastening Type	Locking Ramp
Contact Length - Post	0.126" (3.20mm)
Insulation Height	0.299" (7.60mm)
Contact Shape	Circular
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Features	Board Lock
Temperature Range - Operating	-25°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	3A
Voltage Rating	250V
Base Product Number	S07B-XAS
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	455-4136
Standard Package	200
Win Source Part Number	1089512-S07B-XASK-1(LF)(SN)
Ultra Librarian 3D Model	Ultra Librarian S07B-XASK-1(LF)(SN) CAD Model

Description

The JST Sales America Inc. connector with part number 1089512-S07B-XASK-1(LF)(SN) is a rectangular connector that comes in a shrouded - 4 wall package.

Style: Board to Cable/Wire
Pitch - Mating: 0.098" (2.50mm)
Connector Type: Header
Contact Type: Male Pin
Number of Positions Loaded: All
Number of Positions: 7
Fastening Type: Locking Ramp
Voltage Rating: 250V
Contact Material: Copper Alloy
Contact Finish - Mating: Tin
Contact Finish - Post: Tin
Operating Temperature: -25°C to 85°C
