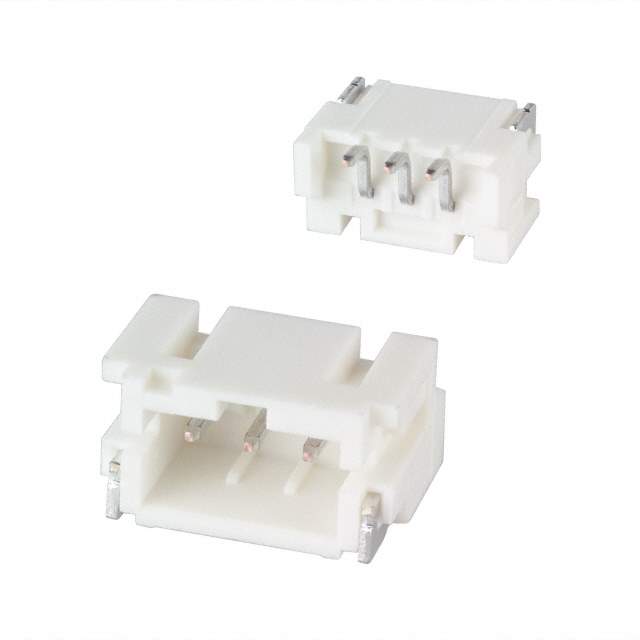

S3B-PH-SM4-TB(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

S3B-PH-SM4-TB(LF)(SN)

Part No S3B-PH-SM4-TB(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description Conn Shrouded Header (4 Sides) HDR 3 POS 2mm Solder RA Side Entry SMD T/R / CONN HEADER SMD R/A 3POS 2MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Packaging Reel
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 3
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Style SMT, Right Angle
Termination Solder
Fastening Type Detent Lock
Contact Length - Mating 0.130" (3.30mm)
Insulation Height 0.217" (5.51mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA6T), Nylon 6T
Features Solder Retention
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 2A
Voltage Rating 100V
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 758266-S3B-PH-SM4-TB(LF)(SN)
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name PH
Introduction Date October 18, 2005
ECCN EAR99
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian S3B-PH-SM4-TB(LF)(SN) CAD Model

Description

The JST Sales America Inc. 758266-S3B-PH-SM4-TB(LF)(SN) is an electronic component that belongs to the PH family.

  • Manufacturer: JST Sales America Inc.
  • Family: PH family
  • Style: board-to-cable/wire style connector
  • Features: shrouded 4 wall
  • Contact Finish for Mating: tin
  • Pitch for Mating: 0.079 inches (2.00mm)
  • Supply and Demand Status: balanced
  • Manufacturer Part Number: 758266-S3B-PH-SM4-TB(LF)(SN)
