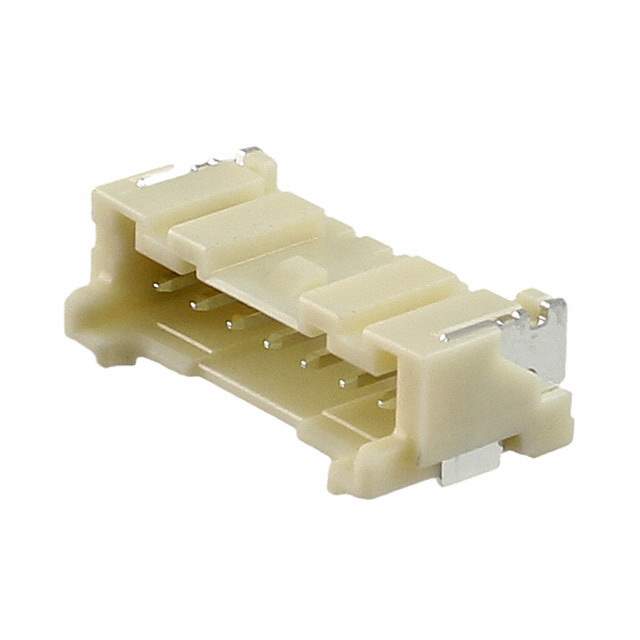

SM07B-PASS-TBT(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

SM07B-PASS-TBT(LF)(SN)

Part No SM07B-PASS-TBT(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD R/A 7POS 2MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer JST Sales America Inc.
Packaging Reel
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 7
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Style Surface Mount, Right Angle
Termination Solder
Fastening Type Locking Ramp
Insulation Height 0.224" (5.69mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA), Nylon
Features Pick and Place, Solder Retention
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 3A
Voltage Rating 250V
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 808523-SM07B-PASS-TBT(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian SM07B-PASS-TBT(LF)(SN) CAD Model

Description

The 808523-SM07B-PASS-TBT(LF)(SN) is a surface mount, right angle header connector from JST Sales America Inc. with 7 positions.

  • Positions: 7
  • Pitch: 0.079 inches
  • Contact Material: Copper alloy
  • Voltage Rating: 250V
  • Material Flammability Rating: UL94 V-0
  • Insulation Material: Polyamide (PA) and nylon
  • Shrouded: 4 walls
  • Insulation Height: 0.224 inches
  • Current Rating: 3A
  • Manufacturer Pack Quantity: 1,000
