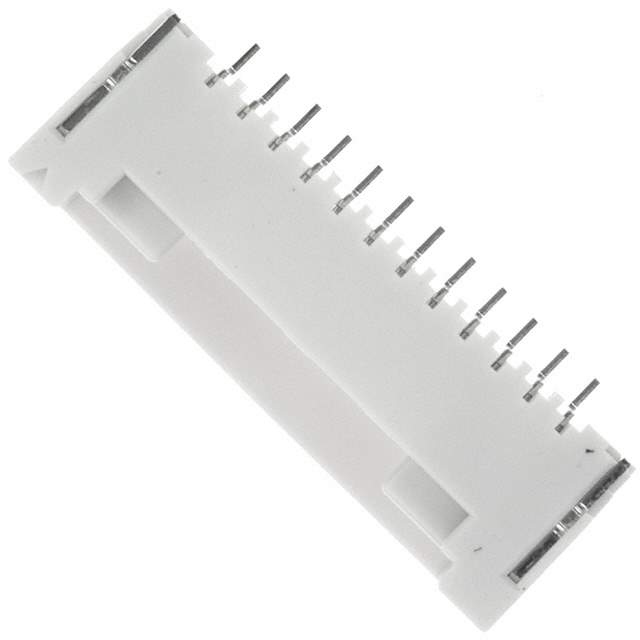

SM12B-ZESS-TB(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

SM12B-ZESS-TB(LF)(SN)

Part No SM12B-ZESS-TB(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER R/A SMD 12POS ZE
Datasheet
SM12B-ZESS-TB(LF)(SN) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Packaging Reel - TR
Status Active
Connector Type Header
Contact Type Outer Shroud Contact
Pitch - Mating 0.059" (1.50mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 12
Number of Positions Loaded All
Number of Rows 1
Mounting Surface Mount, Right Angle
Termination Solder
Fastening Type Locking Ramp
Insulation Height 0.228" (5.80mm)
Contact Shape Rectangular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Insulation Material Polyamide (PA), Nylon
Features Solder Retention
Temperature Range - Operating -25°C to 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating 2A
Voltage Rating 100V
Mated Stacking Heights 5.8mm
Win Source Part Number 1096902-SM12B-ZESS-TB(LF)(SN)
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SM12B-ZESS-TB(LF)(SN) CAD Model

Description

The JST Sales America Inc. 1096902-SM12B-ZESS-TB(LF)(SN) is a 12-position header connector with solder retention.

  • Contact: Outer shroud contact
  • Positions: All positions are loaded
  • Shroud: Shrouded with 4 walls
  • Fastening: Locking ramp
  • Voltage Rating: 100V
  • Current Rating: 2A
  • Mated Stacking Heights: 5.8mm
  • Insulation Material: Polyamide (PA), nylon
  • Style: Board to cable/wire
  • Pitch-Mating: 0.059" (1.50mm)
  • Contact Finish: Tin
  • Insulation Color: Natural
  • Mounting: Surface mountable with a right angle mounting style
  • Supply and Demand Status: Balanced
  • Status: Active product
