Same model may have multiple batches, images only for reference.

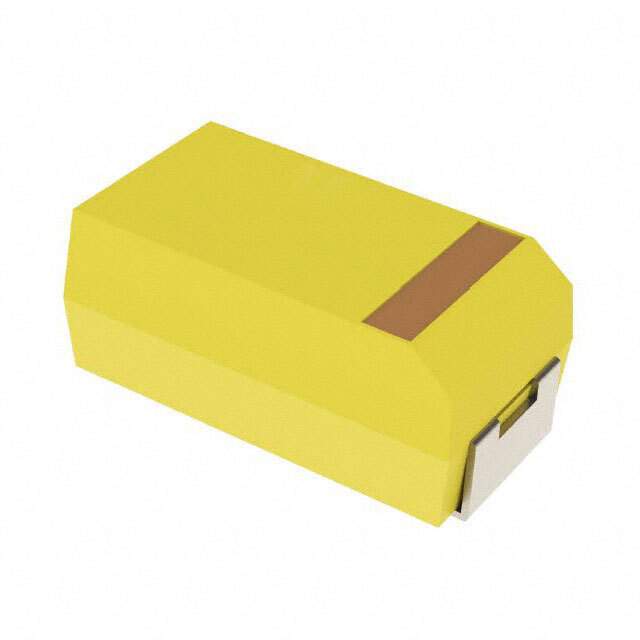

B45196H5106M309 Real Image
Same model may have multiple batches, images only for reference.

B45196H5106M309

Part No B45196H5106M309
Manufacturer Kemet
Catalog Tantalum Capacitors
Description CAP TANT 10UF 25V 20% 2413
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Kemet
Packaging Reel - TR
Status Obsolete(EOL)
Capacitance 10μF
Tolerance ±20%
Voltage Rating 25V
Type Molded
ESR 1.6 Ohm
Temperature Range - Operating -55°C to 125°C
Mounting SMD (SMT)
Dimension 0.236" L x 0.126" W (6.00mm x 3.20mm)
Height - Seated (Max) 0.110" (2.80mm)
Manufacturer Size Code C
Features General Purpose
Win Source Part Number 048895-B45196H5106M309
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian B45196H5106M309 CAD Model

Description

Overview of B45196H5106M309

The B45196H5106M309 is an advanced aluminum electrolytic capacitor, known for its efficiency and diverse application range in modern electronics.

Applications

  • DC-DC converters
  • Industrial inverters
  • Consumer electronics
  • Telecommunications equipment

Features and Benefits

  • Reliable performance with high capacitance
  • Low equivalent series resistance (ESR) for improved efficiency
  • Durable design that extends product lifecycle
  • Minimal audio distortion in audio applications

Additional Details

This capacitor is ideal for environments demanding low ESR and high reliability, particularly in demanding and precision-based applications.
