Same model may have multiple batches, images only for reference.

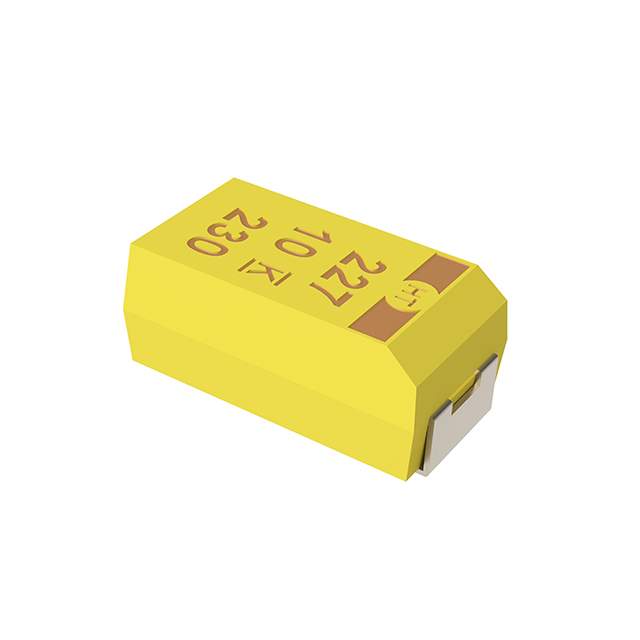

B45196P2475K109 Real Image
Same model may have multiple batches, images only for reference.

B45196P2475K109

Part No B45196P2475K109
Manufacturer Kemet
Catalog Ceramic Capacitors
Description Capacitor; Tantalum; Cap 4.7uF; Tol 10%; SMT; Vol-Rtg 10V; Cut Tape
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Capacitance 4.7 µF
Mounting SMD (SMT)
Case / Package 1206
Case Code (Imperial) 1206
Case / Package 3216
Depth 1.6 mm
Dielectric Material Tantalum
Dissipation Factor 4.5 %
ESR (Equivalent Series Resistance) 2.9 Ω
Height 1.8 mm
Lead Free Yes
Leakage Current 500 nA
Length 3.2 mm
Maximum Operating Temperature 150 °C
Min Operating Temperature -55 °C
Number of Pins 2
Packaging Tape and Reel
Polarity Polar
REACH SVHC No SVHC
RoHS Compliant
Termination SMD/SMT
Tolerance 10 %
Voltage Rating 10 V
Voltage Rating (DC) 10 V
Weight 16.187578 mg
Width 1.6 mm
Win Source Part Number 1047748-B45196P2475K109
Categories Ceramic Capacitors
Manufacturer Kemet
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian B45196P2475K109 CAD Model

Description

The Kemet 1047748-B45196P2475K109 is a polar ceramic capacitor with a capacitance of 4.7 µF and a voltage rating of 10 V.

  • Capacitance: 4.7 µF
  • Voltage Rating: 10 V
  • Tolerance: 10%
  • ESR: 2.9 Ω
  • Leakage Current: 500 nA
  • Height: 1.8 mm
  • Width: 1.6 mm
  • Length: 3.2 mm
  • RoHS: Compliant
  • Mounting: SMD (SMT)
  • Maximum Operating Temperature: 150°C
  • Minimum Operating Temperature: -55°C
