Same model may have multiple batches, images only for reference.

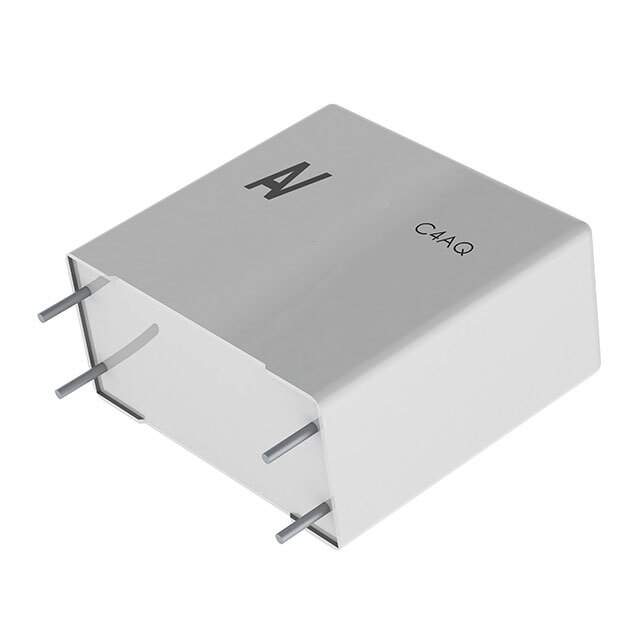

C4AQLBW6130A3NK Real Image
Same model may have multiple batches, images only for reference.

C4AQLBW6130A3NK

Part No C4AQLBW6130A3NK
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 130UF 10% 500VDC RADIAL / 130 µF Film Capacitor 500V Polypropylene (PP), Metallized Radial - 4 Leads
Datasheet
C4AQLBW6130A3NK Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Film Capacitors
Mfr KEMET
Series C4AQ
Package Bulk
Capacitance 130 µF
Tolerance ±10%
Voltage Rating - DC 500V
Dielectric Material Polypropylene (PP) , Metallized
ESR (Equivalent Series Resistance) 2.4 mOhms
Temperature Range - Operating -40°C ~ 105°C
Mounting Type Through Hole
Package / Case Radial - 4 Leads
Size / Dimension 2.264" L x 1.378" W (57.50mm x 35.00mm)
Height - Seated (Max) 1.980" (50.30mm)
Termination PC Pins
Lead Spacing 2.067" (52.50mm)
Applications Automotive; DC Link, DC Filtering
Ratings AEC-Q200
Base Product Number C4AQLB
Standard Package 23
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0070
Win Source Part Number 1341183-C4AQLBW6130A3NK
Ultra Librarian 3D Model Ultra Librarian C4AQLBW6130A3NK CAD Model

Description

The KEMET C4AQ series film capacitor is designed for use in automotive DC link and DC filtering applications.

  • Capacitance: 130 µF
  • Voltage Rating: 500V DC
  • Dielectric Material: Polypropylene, Metallized
  • ESR (Equivalent Series Resistance): 2.4 mOhms
  • Lead Spacing: 2.067 inches (52.50mm)
  • Operating Temperature: -40°C to 105°C
  • AEC-Q200: Yes
  • Package: Radial, 4 Lead
  • Height: 1.980 inches (50.30mm)
