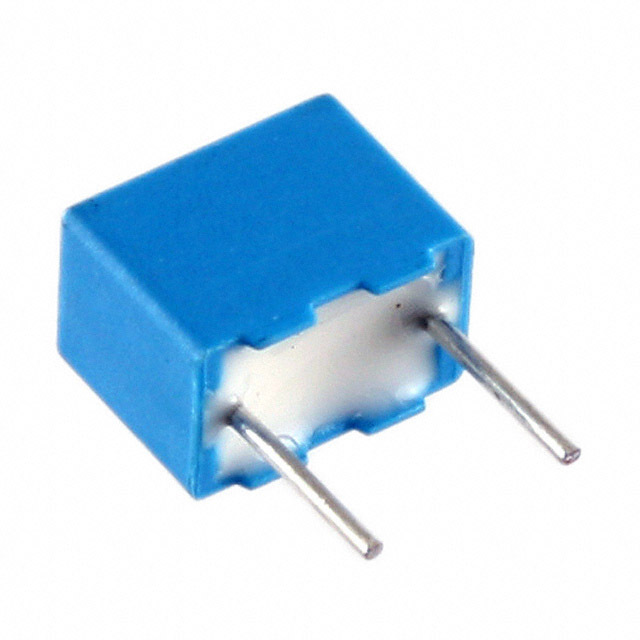

PHE850EA4330MA02R17 Kemet – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

PHE850EA4330MA02R17

Part No PHE850EA4330MA02R17
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 3300PF 20% 1.25KVDC RAD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Capacitance 3300 pF
Tolerance ±20%
Voltage Rating - AC 300V
Voltage Rating - DC 1250V (1.25kV)
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -55°C ~ 110°C
Mounting Type Through Hole
Case / Package Radial
Size / Dimension 0.512" L x 0.177" W (13.00mm x 4.50mm)
Height - Seated (Max) 0.413" (10.50mm)
Termination PC Pins
Lead Spacing 0.394" (10.00mm)
Applications EMI, RFI Suppression
Ratings Y2
Package Bulk
Supply and Demand Status Normal
Win Source Part Number 1521502-PHE850EA4330MA02R17
Ultra Librarian 3D Model Ultra Librarian PHE850EA4330MA02R17 CAD Model
