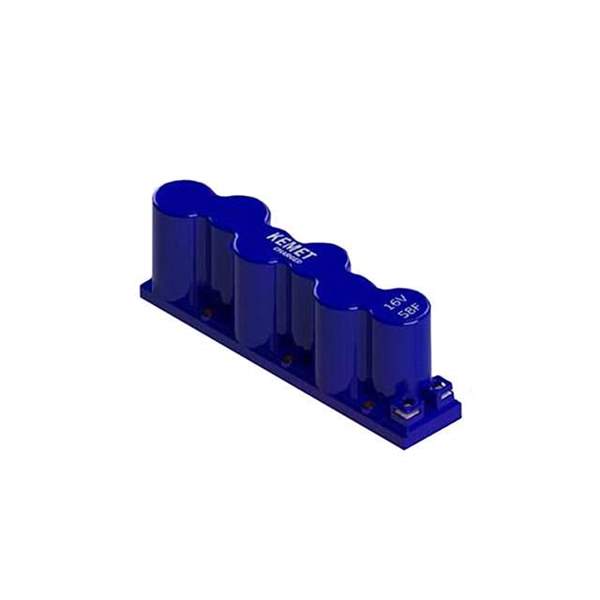

S01PM5805K016A Real Image
Same model may have multiple batches, images only for reference.

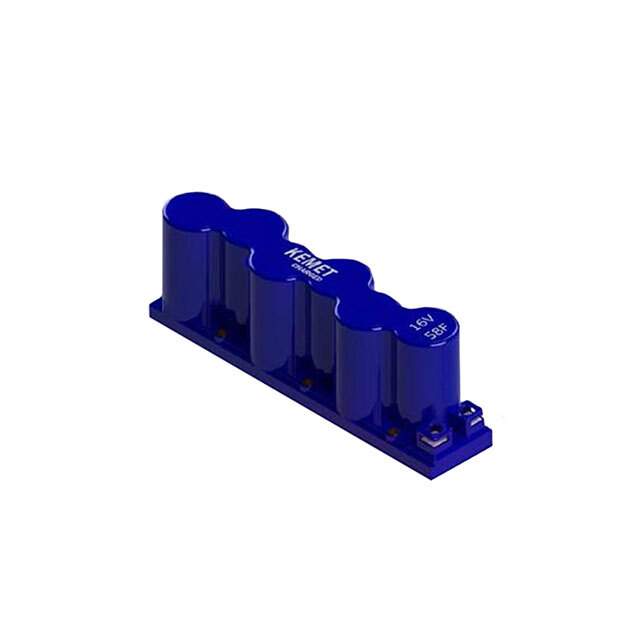

S01PM5805K016A

Part No S01PM5805K016A
Manufacturer Kemet
Catalog Electric Double Layer Capacitors, Supercaps
Datasheet
S01PM5805K016A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Electric Double Layer Capacitors (EDLC), Supercapacitors
Mfr KEMET
Series S01
Package Bulk
Product Status Obsolete
Capacitance 58 F
Tolerance ±10%
Voltage - Rated 16 V
ESR (Equivalent Series Resistance) 23mOhm
Lifetime @ Temp. 1000 Hrs @ 65°C
Termination Screw Terminals
Mounting Type Chassis Mount
Package / Case Module
Dimension 8.873" L x 2.000" W (225.37mm x 50.80mm)
Height - Seated (Max) 3.000" (76.20mm)
Temperature Range - Operating -40°C ~ 65°C
Other Names 399-11550
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0070
Win Source Part Number 1302779-S01PM5805K016A
Ultra Librarian 3D Model Ultra Librarian S01PM5805K016A CAD Model

Description

The S01PM5805K016A is an electric double layer capacitor in a module package from KEMET.

  • Capacitance: 58 F
  • Rated Voltage: 16 V
  • ESR: 23 mOhm
  • Lifetime: 1000 Hrs @ 65°C
