Same model may have multiple batches, images only for reference.

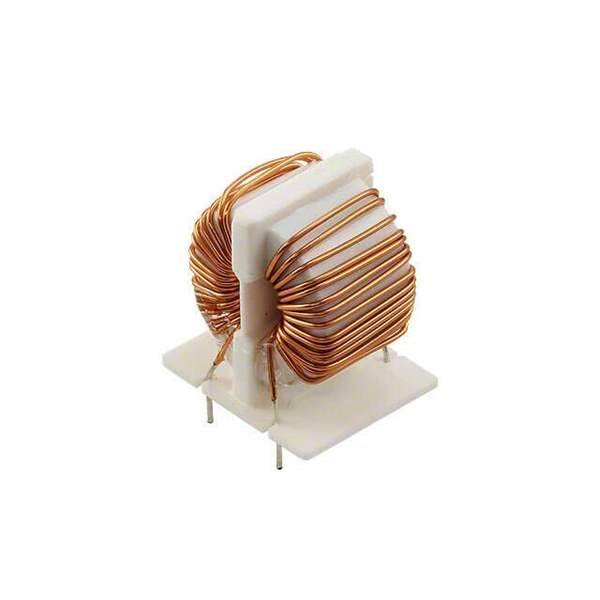

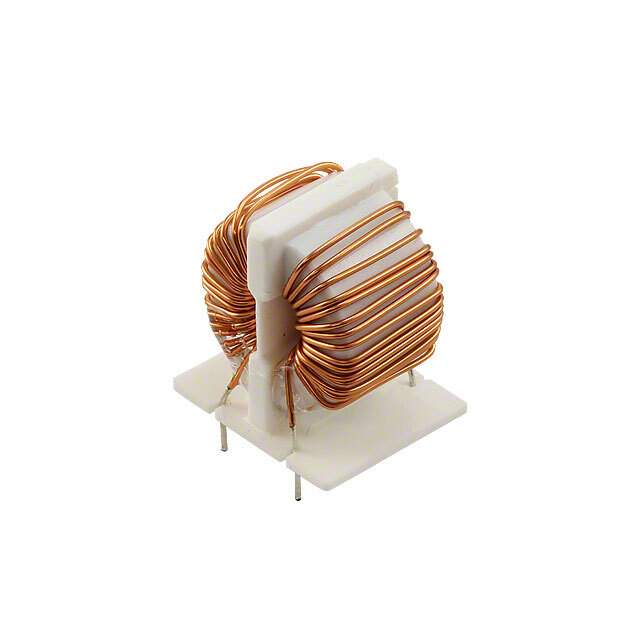

SC-02-10J Real Image
Same model may have multiple batches, images only for reference.

SC-02-10J

Part No SC-02-10J
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 1 mH @ 100 kHz
Current Rating (Max) 2A
DC Resistance (DCR) (Max) 100mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 0.984" L x 0.787" W (25.00mm x 20.00mm)
Height (Max) 1.063" (27.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SC-02
Other Names 399-10647,UALSC0210J0000
Standard Package 400
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4065
Win Source Part Number 1277091-SC-02-10J
Ultra Librarian 3D Model Ultra Librarian SC-02-10J CAD Model

Description

The Kemet 1277091-SC-02-10J is a common mode choke filter with a voltage rating of 250V AC/DC and a current rating of 2A.

  • Filter Type: Power Line
  • Inductance: 1 mH @ 100 kHz
  • Mounting: Through-Hole
  • Dimension: 0.984" L x 0.787" W (25.00mm x 20.00mm)
  • Height: 1.063" (27.00mm)
  • RoHS Compliant: Yes
  • ECCN: EAR99
  • Estimated EOL Date: Not Available
